JST | B8P-VH-FB-B(LF)(SN)

Manufacturer Part #

B8P-VH-FB-B(LF)(SN)

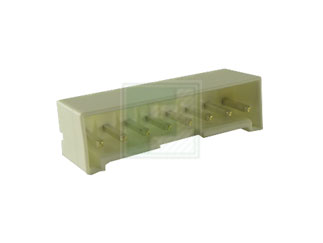

VH Series 8 Position 3.96 mm Wire to Board Disconnectable Connector

ECAD Model:
Mfr. Name: JST
Standard Pkg:
Product Variant Information section
Date Code: 2344
Product Specification Section
JST B8P-VH-FB-B(LF)(SN) - Technical Attributes
Attributes Table
Type: Wire to Board
No of Positions: 8
Pitch: 3.96 mm
Style/Orientation: Free Hanging Socket/Receptacle
Termination: Crimp
Features & Applications

The B8P-VH-FB-B(LF)(SN) is a part of VH series 8 position 3.96 mm pitch wire to board disconnectable connector. It has an operating temperature ranging from -25°C to +85°C.

Features:

  • Current rating: 10 A AC, DC
  • Voltage rate: 250 V AC, DC
  • Contact resistance: Initial value/10mO max
  • Insulation resistance: 1000 MO min
  • Withstanding voltage: 1500 V AC/minute
  • Applicable wire: AWG#22 to #16
  • Applicable PC board thickness: 1.6 mm
  • Proven box contact
  • Compact connector with a large capacity
  • Secure contact and mounting

View the complete VH series of wire to board connector

Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
16 Weeks
Minimum Order:
100
Multiple Of:
100
Total
$37.00
USD
Quantity
Unit Price
100
$0.37
300
$0.365
1,000
$0.355
2,000
$0.35
4,000+
$0.34
