Manufacturer Part #
SHR-05V-S-B

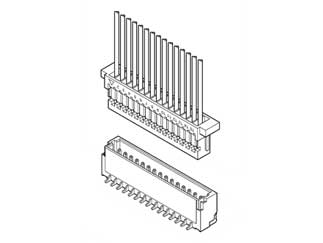

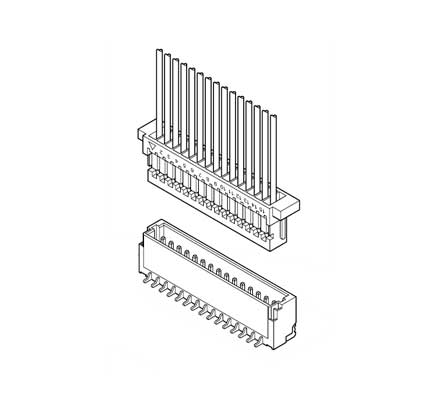

5 Position 1.00mm Receptacle Housing
| | |||||||||||
| | |||||||||||
| Mfr. Name: | JST | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2000 per Bag | ||||||||||
| Date Code: | 2440 | ||||||||||
Product Specification Section
JST SHR-05V-S-B - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SHR-05V-S-B&field4=JST&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--socket-plug-wire-mount/shr-05v-s-b-jst-7216369
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SHR-05V-S-B&field4=JST&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--socket-plug-wire-mount/shr-05v-s-b-jst-7216369
JST SHR-05V-S-B - Technical Attributes
Attributes Table
| Type: | Wire to Board |
| No of Positions: | 5 |
| Pitch: | 1 mm |
| Style/Orientation: | Free Hanging Socket/Receptacle |
| Termination: | Crimp |
Features & Applications
The World's first 1.0 mm(0.39") pitch crimp style connector.
Features:
- Ultra-compact, low profile design
- Compatible with the SR insulation displacement connectors
- Housing lances
View the Complete SHR-05V-S-B family of Socket (Receptacle) - Wire Mount
Pricing Section
Global Stock:
2,000
USA:
2,000
On Order:
0
Factory Lead Time:
16 Weeks
Quantity
Unit Price
2,000
$0.0543
6,000
$0.0529
8,000
$0.0525
20,000
$0.0514
30,000+
$0.0502
Product Variant Information section
Available Packaging
Package Qty:
2000 per Bag
