Manufacturer Part #
57.404.7055.0

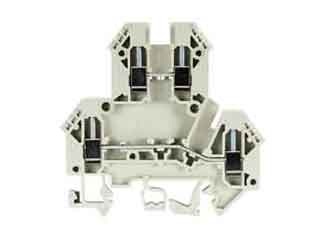

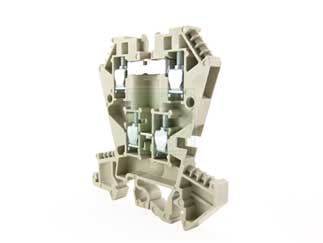

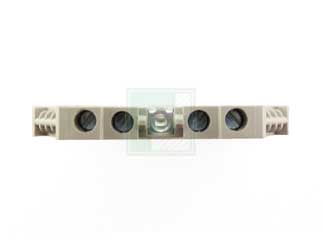

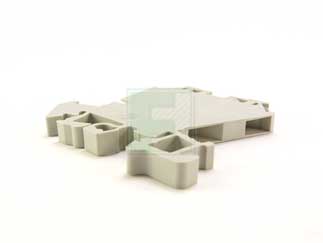

MULTI TIER Terminal Block with 6 mm width gray color
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Wieland Electric | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:100 per Box | ||||||||||
| Date Code: | 2511 | ||||||||||
Product Specification Section
Wieland Electric 57.404.7055.0 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=57.404.7055.0&field4=Wieland Electric&field18=https://p1na.futureelectronics.com/p/interconnect--terminal-blocks--euro-style/57-404-7055-0-wieland-electric-7692007
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=57.404.7055.0&field4=Wieland Electric&field18=https://p1na.futureelectronics.com/p/interconnect--terminal-blocks--euro-style/57-404-7055-0-wieland-electric-7692007
Wieland Electric 57.404.7055.0 - Technical Attributes
Attributes Table
| Type: | Terminal Block |
| Wire Gauge: | AWG 22-10 |
| Termination: | Screw |
| Style: | Eurostyle |
Features & Applications
The 57.404.7055.0 is a Multi-Tier Terminal Block With 6 mm width and grey color which can be mounted on TS 35 and TS 32 with Screw Connection.
Product Features:
- Nominal cross section: 4 mm²
- Colour: Grey
- Number of levels: 2
- Number of clamp positions per level: 2
- Width/grid dimension: 6 mm
- Insulating housing: PA666
- Mounting method: DIN rail (top hat rail)/G-rail
- Rated current: 32 A
- Rated voltage: 400 V
- Rated impulse voltage: 6
- Pollution degree: 3
- Length: 61.6 mm
- Type of insulation material: Thermoplastic
- Minimum cross section solid: 0.5 mm²
- Maximum cross section solid: 4 mm²
- Minimum cross section fine stranded: 0.5 mm²
- Maximum cross section fine stranded: 4 mm²
- Wire strip length: 9 mm
- Torque conductor mounting: 0.5 Nm
- Cross section UL: 22-10 AWG
- Voltage UL: 300
- Current factory wiring: 20 A
- Current field wiring: 20 A
- Cross section CSA: 20-12 AWG
- Voltage CSA: 300 V
- Current CSA: 10 A
Pricing Section
Global Stock:
100
USA:
100
On Order:
0
Factory Lead Time:
N/A
Quantity
Unit Price
100
$3.72
200
$3.69
300
$3.67
400
$3.65
500
$3.61
1,000+
$1.80
Product Variant Information section
Available Packaging
Package Qty:
100 per Box
