Manufacturer Part #

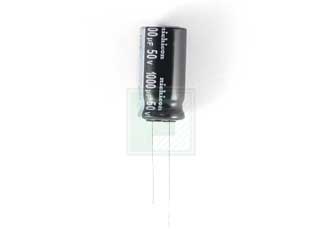

UVR1H102MHD
VR Series 1000 uF 50 V 85°C Ø12.5 x 25mm LS=5mm Radial Aluminum Electrolytic Cap
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Nichicon | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:100 per Bag Mounting Method:Through Hole | ||||||||||
| Date Code: | 2501 | ||||||||||
Nichicon UVR1H102MHD - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=UVR1H102MHD&field4=Nichicon&field18=https://p1na.futureelectronics.com/p/passives--capacitors--aluminum-electrolytic-capacitors/uvr1h102mhd-nichicon-8364234
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=UVR1H102MHD&field4=Nichicon&field18=https://p1na.futureelectronics.com/p/passives--capacitors--aluminum-electrolytic-capacitors/uvr1h102mhd-nichicon-8364234
Nichicon UVR1H102MHD - Technical Attributes
| Series: | VR |
| Type: | Radial |
| Capacitance: | 1000µF |
| Tolerance (%): | ±20% |
| Rated Voltage: | 50V |
| Lifetime@Temperature: | 2000 Hrs @ 85°C |
| Operating Temp Range: | -40°C to +85°C |
| Ripple Current: | 1.35A |
| Lead Spacing: | 5mm |
| Operating Temp-Max: | 85°C |
| Dimension: | L 25mm x D 12.5mm |
| Mounting Method: | Through Hole |
Features & Applications
The UVR series is a general purpose radial leaded aluminum eletrolytic capacitor. It is reduced in size and economically priced. Most sizes are available in standard bulk packaging, but are also available in tape and ammo.
This series voltage ranges from 6.3 to 450 VDC and capacitance ranges from 0.1 to 33,000 microfarads (uf). The tolerance is +/- 20% at 120 Hz, 20’C. The temperature ranges from -40 to +85’C, which allows it to be used in many applications.
The UVR1H102MHD is a 50 V 1000 uf radial leaded capacitor, with a case size of 12.5 x 25 mm. It has an operating temperature of 85’C and tolerance of +/-20 %. The UVR1H102MHD comes in bulk packaging.For detail technical performance data and usage guidelines, see product data sheet.
Available Packaging
Package Qty:
100 per Bag
Mounting Method:
Through Hole
