Manufacturer Part #

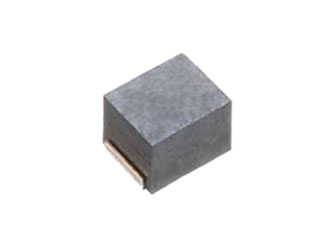

NLV25T-100J-EFD
Inductor General Purpose Chip Molded/Unshielded Wirewound 10uH 5% 2.52MHz 25Q-Fa
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TDK | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2000 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
TDK NLV25T-100J-EFD - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NLV25T-100J-EFD&field4=TDK&field18=https://p1na.futureelectronics.com/p/passives--inductors--multilayer-inductors/nlv25t-100j-efd-tdk-4142619
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NLV25T-100J-EFD&field4=TDK&field18=https://p1na.futureelectronics.com/p/passives--inductors--multilayer-inductors/nlv25t-100j-efd-tdk-4142619
TDK NLV25T-100J-EFD - Technical Attributes
Attributes Table
| Inductance-Nom: | 10µH |
| Tolerance (%): | ±5% |
| Rated Current-Max: | 155mA |
| DC Resistance: | 3.5Ω |
| Shielding: | No |
| Core Material: | Ferrite |
| Test Frequency: | 2.52MHz |
| Operating Temp Range: | -40°C to +105°C |
| Storage Temperature Range: | -40°C to +105°C |
| No of Terminals: | 2 |
| Case Size: | 1008 (2520 Metric) |
| Moisture Sensitivity Level: | 1 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
Factory Lead Time:
10 Weeks
Quantity
Unit Price
2,000
$0.0934
4,000
$0.0917
6,000
$0.0907
8,000
$0.09
10,000+
$0.0879
Product Variant Information section
Available Packaging
Package Qty:
2000 per Reel
Mounting Method:
Surface Mount
