Manufacturer Part #
PA4337.105NLT

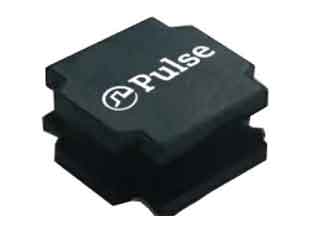

Inductor Power Shielded Drum Core 1000uH 20% 100KHz 0.3A 4.5Ohm DCR 2424 T/R
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Pulse Electronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1500 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Pulse Electronics PA4337.105NLT - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PA4337.105NLT&field4=Pulse Electronics&field18=https://p1na.futureelectronics.com/p/passives--inductors--power-inductors/pa4337-105nlt-pulse-electronics-8123755
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PA4337.105NLT&field4=Pulse Electronics&field18=https://p1na.futureelectronics.com/p/passives--inductors--power-inductors/pa4337-105nlt-pulse-electronics-8123755
Pulse Electronics PA4337.105NLT - Technical Attributes
Attributes Table
| Inductance-Nom: | 1mH |
| Rated Current-Max: | 300mA |
| Tolerance (%): | ±20% |
| Shielding: | Yes |
| DC Resistance: | 4.5Ω |
| Core Material: | Iron |
| Test Frequency: | 100kHz |
| Operating Temp Range: | -40°C to +125°C |
| No of Terminals: | 2 |
| Dimension: | L 6mm x W 6mm x H 4.5mm |
| Moisture Sensitivity Level: | 1 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
21 Weeks
Quantity
Unit Price
1,500+
$0.23
Product Variant Information section
Available Packaging
Package Qty:
1500 per Reel
Mounting Method:
Surface Mount
