Manufacturer Part #

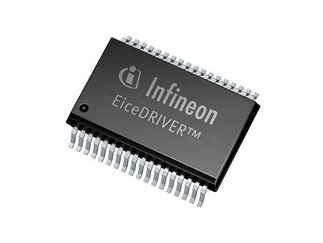

1EDI3051ASXUMA1
20A Gate Driver Capacitive Coupling 8000Vpk 1 Channel PG-DSO-36-85
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Infineon | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Infineon 1EDI3051ASXUMA1 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
Multiple Change Notification
04/11/2025 Details and Download
Design
04/07/2025 Details and Download
Description:PCN containing a change for an enhanced design and corresponding datasheet update, with shortened LDD will be distributed cw14. Once PCN approved, the enhanced part will be available for delivery.Reason:Current design step will no more be available for products 1EDl3050AS & 1EDI3051AS from 15th of April 2025 on.
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1EDI3051ASXUMA1&field4=Infineon&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--drivers--mosfet-igbt-drivers/1edi3051asxuma1-infineon-C894509277
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1EDI3051ASXUMA1&field4=Infineon&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--drivers--mosfet-igbt-drivers/1edi3051asxuma1-infineon-C894509277
Infineon 1EDI3051ASXUMA1 - Technical Attributes
Attributes Table
| Configuration: | Half Bridge |
| No of Outputs: | Single |
| Peak Output Current: | 20A |
| Supply Voltage-Max: | 5.5V |
| Rise Time: | 45ns |
| Fall Time: | 45ns |
| Operating Temp Range: | -40°C to +150°C |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
20 Weeks
Quantity
Unit Price
1,000+
$2.99
Product Variant Information section
Available Packaging
Package Qty:
1000 per Reel
Mounting Method:
Surface Mount
