Manufacturer Part #

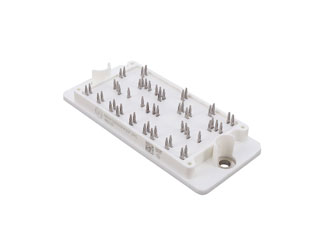

NXH450B100H4Q2F2SG
1000V,75A FSIII IGBT, Mid Speed with Solder Pins
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:36 per Tray Package Style:Module Mounting Method:Chassis Mount | ||||||||||
| Date Code: | 2422 | ||||||||||
Product Specification Section
onsemi NXH450B100H4Q2F2SG - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NXH450B100H4Q2F2SG&field4=onsemi&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--drivers--mosfet-igbt-drivers/nxh450b100h4q2f2sg-onsemi-9143060
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NXH450B100H4Q2F2SG&field4=onsemi&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--drivers--mosfet-igbt-drivers/nxh450b100h4q2f2sg-onsemi-9143060
onsemi NXH450B100H4Q2F2SG - Technical Attributes
Attributes Table
| Configuration: | Half Bridge |
| No of Outputs: | Dual |
| Output Current: | 101A |
| Peak Output Current: | 303A |
| Supply Voltage-Max: | 1000V |
| Rated Power Dissipation: | 234W |
| Operating Temp Range: | -40°C to +150°C |
| Package Style: | Module |
| Mounting Method: | Chassis Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
15 Weeks
Quantity
Unit Price
36+
$148.44
Product Variant Information section
Available Packaging
Package Qty:
36 per Tray
Package Style:
Module
Mounting Method:
Chassis Mount
