Manufacturer Part #
BD63843EFV-E2

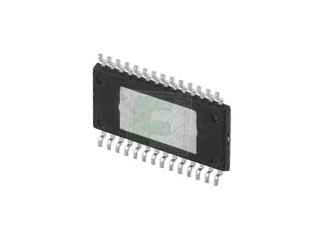

BD63843EFV Series 28 V 1 A Surface Mount Stepping Moto Driver - HTSSOP-28
| | |||||||||||
| | |||||||||||
| Mfr. Name: | ROHM | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2500 per Reel Package Style:HTSSOP-28 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
ROHM BD63843EFV-E2 - Product Specification
Shipping Information:
ECCN:
PCN Information:
At ROHM Electronics Philippines, Inc., LSI production building will be relocated to a new building in order to avoid risks associated with the aging of the existing building (Building D) and to ensure a stable supply.There are no 4Ms-related changes in the products which relocated to the new production building. Therefore, we believe that product quality is equivalent.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=BD63843EFV-E2&field4=ROHM&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--drivers--motor-drivers/bd63843efv-e2-rohm-2001076
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=BD63843EFV-E2&field4=ROHM&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--drivers--motor-drivers/bd63843efv-e2-rohm-2001076
ROHM BD63843EFV-E2 - Technical Attributes
| No of Outputs: | Dual |
| Supply Voltage-Max: | 28V |
| Package Style: | HTSSOP-28 |
| Mounting Method: | Surface Mount |
Features & Applications
Features:
- Low on-resistance DMOS, rated output current 1.0 A
- CLK-IN drive
- 1/16µ-step
- Power-saving function
- Forward rotation & reverse rotation switching function
- TSD(Thermal Shutdown) circuit
- OCP(Over Current Protection) circuit
- UVLO(Under Voltage Locked Out) circuit
- OVLO(Under Voltage Locked Out) circuit
- Power ON reset function
- Compact, thin-shape, and high heat dissipation package
- Current decay mode selection(Mix decay)
- One power supply system 36 V
- pin-compatible line up (BD63847EFV)
Applications:
- Multi-function printer
- Laser beam printer
- Ink jet printer
- Monitoring camera
- WEB Camera
- sewing machine
- Photo printer
- Scanner
- Toy and robot
Available Packaging
Package Qty:
2500 per Reel
Package Style:
HTSSOP-28
Mounting Method:
Surface Mount
