Microchip | MIC4102YM

The MIC4102YM is a high frequency, 100 V Half Bridge MOSFET driver IC featuring internal anti-shoot-through protection. The low-side and high-side gate drivers are controlled by a single input signal to the PWM pin. The MIC4102 implements adaptive anti-shoot-through circuitry to optimize the switching transitions for maximum efficiency. The single input control also reduces system complexity and greatly simplifies the overall design.

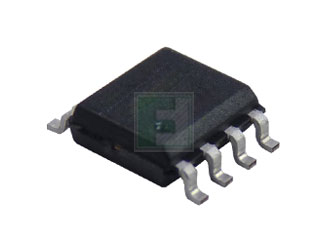

The MIC4102 also features a low-side drive disable pin. This gives the MIC4102 the capability to operate in a non-synchronous buck mode. This feature allows the MIC4102 to start up into applications where a bias voltage may already be present without pulling the output voltage down. Under-voltage protection on both the low-side and high-side supplies forces the outputs low. An on-chip boot-strap diode eliminates the discrete diode required with other driver ICs. The MIC4102 is available in the SOIC-8L package with a junction operating range from –40 ° C to +125 ° C.

Key Features:

• Drives high- and low-side N-Channel MOSFETs with single input.
• Adaptive anti-shoot-through protection.
• Low side drive disable pin.
• Bootstrap supply voltage to 118 V DC.
• Supply voltage up to 16 V.
• TTL input thresholds.
• On-chip bootstrap diode.
• Fast 30 ns propagation times.
• Drives 1000 pF load with 10 ns rise and fall times.
• Low power consumption.
• Supply under-voltage protection.
• 2.5 Ω pull up, 1.5 Ω pull down output resistance.
• Space saving SOIC-8L package.
• -40°C to +125°C junction temperature range.

Applications:

• High voltage buck converters.
• 2-stage push-pull converters.
• Networking / Telecom power supplies.
• Automotive power supplies.
