Manufacturer Part #
NCP1034DR2G

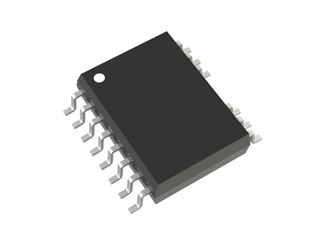

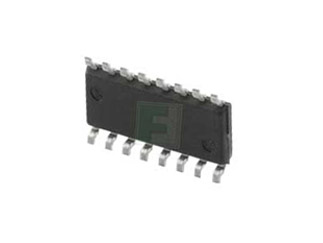

NCP Series 3 mA 500 kHz Surface Mount Synchronous PWM Buck Controller - SOIC-16
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2500 per Reel Package Style:SOIC-16 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2441 | ||||||||||
Product Specification Section
onsemi NCP1034DR2G - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
onsemi NCP1034DR2G - Technical Attributes
Attributes Table
| Supply Current-Max: | 3mA |
| Supply Voltage: | 10V to 18V |
| Frequency-Max: | 500kHz |
| Input Current: | 20mA |
| Input Voltage: | 100V |
| Topology: | Buck |
| Duty Cycle-Min: | 0% |
| Duty Cycle-Max: | 80% |
| Operating Temp Range: | -40°C to +125°C |
| Storage Temperature Range: | -55°C to +150°C |
| Thermal Resistance: | 130°C/W |
| Package Style: | SOIC-16 |
| Mounting Method: | Surface Mount |
Features & Applications
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
13 Weeks
Quantity
Unit Price
2,500+
$1.39
Product Variant Information section
Available Packaging
Package Qty:
2500 per Reel
Package Style:
SOIC-16
Mounting Method:
Surface Mount
