Manufacturer Part #
AP2281-3WG-7

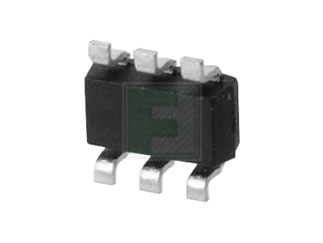

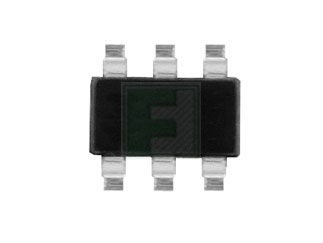

AP2281 Series 100 mOhm 2 A Single Channel High Side Load Switch - SOT-26
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Diodes Incorporated | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Package Style:SOT-23-6 (SOT-26) Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2536 | ||||||||||
Product Specification Section
Diodes Incorporated AP2281-3WG-7 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=AP2281-3WG-7&field4=Diodes Incorporated&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--power-switches/ap2281-3wg-7-diodes-incorporated-4000564
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=AP2281-3WG-7&field4=Diodes Incorporated&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--power-switches/ap2281-3wg-7-diodes-incorporated-4000564
Diodes Incorporated AP2281-3WG-7 - Technical Attributes
Attributes Table
| Configuration: | High Side |
| Input Voltage: | 1.5V to 6V |
| No of Elements: | Single |
| On-state Resistance-Max: | 100mΩ |
| Rated Current-Max: | 2A |
| Type: | Load Switch |
| Package Style: | SOT-23-6 (SOT-26) |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
24 Weeks
Quantity
Unit Price
3,000
$0.153
6,000
$0.151
9,000
$0.15
12,000
$0.149
15,000+
$0.147
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Package Style:
SOT-23-6 (SOT-26)
Mounting Method:
Surface Mount
