Manufacturer Part #

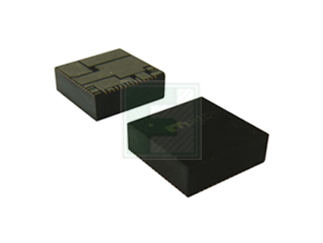

MIC45208-1YMP-TR
MIC45208 Series 26 V 10 A 600 kHz DC-DC Power Module w/ Hyperlight Load - QFN-52
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:750 per Reel Package Style:QFN-52 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Microchip MIC45208-1YMP-TR - Product Specification
Shipping Information:
ECCN:
PCN Information:
Revision History:May 29, 2023: Issued initial notification.May 24, 2024: Issued final notification. Attached the Qualification Report. Revised the affected parts list due to updated scope. Provided estimated first ship date to be on June 14, 2024.Description of Change:Qualification of UNIG as a new final test site for various products available in Tube, Tray and Tape & Reel packing media.Reason for Change:To improve manufacturability and on-time delivery performance by qualifying UNIG as a new final test site.
Microchip has released a new Datasheet for the MIC45208-1/-2 -26V, 10A DC-to-DC Power Module Data Sheet of devices. Notification Status: FinalDescription of Change:Corrected Table 3-1Updated Section 6.0, Packaging Information with the most current informationMinor text changes throughout documentImpacts to Data Sheet: NoneReason for Change: To Improve ProductivityChange Implementation Status: CompleteDate Document Changes Effective: 11 Apr 2024
Microchip has released a new Datasheet for the MIC45208-1/-2 - 26V, 10A DC-to-DC Power Module Data Sheet of devices.Description of Change:Corrected Table 3-1.Updated Section 6.0, Packaging Information with the most current information.Minor text changes throughout document.Reason for Change: To improve productivity.
Description of Change:Qualification of UNIG as a new assembly site for selected MIC1344, MIC23099, MIC2785, MIC28, MIC33xx, MIC38xx, MIC45xx, MX55, MX57, MX85 and MXT57 device families available in various packages.Pre and Post Change Summary: See attachedImpacts to Data Sheet:NoneChange ImpactNoneReason for Change:To improve on time delivery performance by qualifying UNIG as a new assembly site.Change Implementation Status:In ProgressEstimated Qualification Completion Date:June 2024Note: Please be advised the qualification completion times may be extended because of unforeseen business conditions however implementation will not occur until after qualification has completed and a final PCN has been issued. The final PCN will include the qualification report and estimated first ship date. Also note that after the estimated first ship date guided in the final PCN customers may receive pre and post change parts.Time Table Summary: See attachedQualification Plan:Please open the attachments included with this PCN labeled as PCN_#_Qual_Plan.Revision History:November 24, 2023: Issued initial notification.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=MIC45208-1YMP-TR&field4=Microchip&field18=https://p1emea.futureelectronics.com/p/semiconductors--analog--regulators-reference--integrated-power-modules/mic45208-1ymp-tr-microchip-6076099
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=MIC45208-1YMP-TR&field4=Microchip&field18=https://p1emea.futureelectronics.com/p/semiconductors--analog--regulators-reference--integrated-power-modules/mic45208-1ymp-tr-microchip-6076099
Microchip MIC45208-1YMP-TR - Technical Attributes
| Input Voltage: | 4.5V to 26V |
| Output Voltage: | 5.5V |
| Output Current: | 10A |
| Dimensions: | 10 x 10 x 4 mm |
| Package Style: | QFN-52 |
| Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
750 per Reel
Package Style:
QFN-52
Mounting Method:
Surface Mount
