Manufacturer Part #

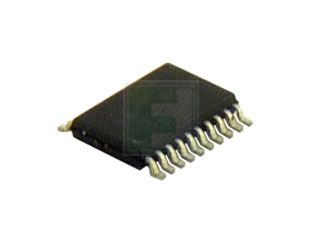

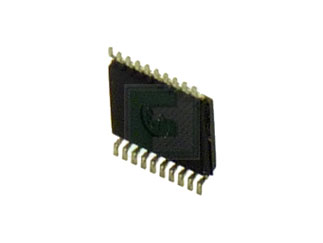

BD9842FV-E2
BD Series 3.6 to 35 V 1500 kHz Buck SMT Switching Regulator - SSOP-B20
| | |||||||||||
| | |||||||||||
| Mfr. Name: | ROHM | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2500 per Reel Package Style:SSOP-B20 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
ROHM BD9842FV-E2 - Product Specification
Shipping Information:
ECCN:
PCN Information:
At ROHM Electronics Philippines, Inc., LSI production building will be relocated to a new building in order to avoid risks associated with the aging of the existing building (Building D) and to ensure a stable supply.There are no 4Ms-related changes in the products which relocated to the new production building. Therefore, we believe that product quality is equivalent.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=BD9842FV-E2&field4=ROHM&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--regulators-reference--switching-regulators/bd9842fv-e2-rohm-C010512822
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=BD9842FV-E2&field4=ROHM&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--regulators-reference--switching-regulators/bd9842fv-e2-rohm-C010512822
ROHM BD9842FV-E2 - Technical Attributes
| Topology: | Buck |
| Input Voltage: | 3.6V to 35V |
| Output Current-Max: | 13mA |
| Switching Frequency-Max: | 1.5MHz |
| Package Style: | SSOP-B20 |
| Mounting Method: | Surface Mount |
Features & Applications
The BD9842FV-E2 is a dual-output high frequency step-down switching regulator with supply voltage of 36 V. Available in a SSOP-B20 package.
Features:
- FET driver circuit is contained (step-down circuit 2 output)
- Error amplifier reference voltage(1.0 V ±1 %) and REG output circuit (2.5 V) are contained
- Overcurrent detection circuit is contained
- Soft start and pause period can be adjusted
- Three modes of standby, master and slave can be switched
- ON/OFF control is enabled independently for each channel (DT terminal)
Applications:
- LCD
- PDP
- PC
- AV
- Printer
- DVD
- Projector TV
- Fax
Available Packaging
Package Qty:
2500 per Reel
Package Style:
SSOP-B20
Mounting Method:
Surface Mount
