Manufacturer Part #

ST1S06PUR

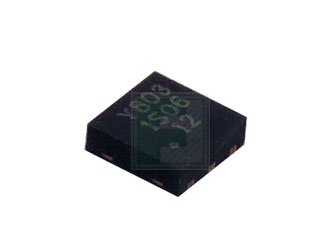

ST1S06 Series Synchronous Rectification Step Down Switching Regulator - DFN-6D

ST1S06PUR Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free. Learn more about ECAD model.
Mfr. Name:	STMicroelectronics
Standard Pkg:	Product Variant Information section Available Packaging Reel ReelSelected Variant Qty: 3,000+ / Unit Price: $0.45 / Stock: 0 Qty: 3,000+$0.45 Stock: 0 Reel Qty: 3,000+ / Unit Price: $0.45 / Stock: 0 Qty: 3,000+$0.45 Stock: 0 Reel Qty: 3,000+ / Unit Price: $0.45 / Stock: 3,000 Qty: 3,000+$0.45 Stock: 3,000 Package Qty: 3000 per Reel Package Style: DFN-6D Mounting Method: Surface Mount
Date Code:	2343

STMicroelectronics ST1S06PUR - Technical Attributes

Topology:	Buck
Input Voltage:	2.7V to 6V
Output Current-Max:	1.5A
Switching Frequency-Max:	1.8MHz
Package Style:	DFN-6D
Mounting Method:	Surface Mount

Features & Applications

The ST1S06PUR is a step down DC-DC converter optimized for powering low-voltage digital core in HDD applications and, generally, to replace the high current linear solution when the power dissipation may cause an high heating of the application environment. It provides up to 1.5 A over an input voltage range of 2.7 V to 6 V.

An high switching frequency (1.5 MHz) allows the use of tiny surface-mount components: as well as the resistor divider to set the output voltage value, only an inductor and two capacitors are required. Besides, a low output ripple is guaranteed by the current mode PWM topology and by the use of low ESR SMD ceramic capacitors. The device is thermal protected and current limited to prevent damages due to accidental short circuit. The ST1S06xx is available in DFN6D (3x3 mm) package.
