Manufacturer Part #
TLV49644TAXBXA1

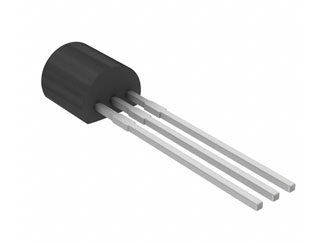

26V 1.6mA Unipolar Switch Open Drain Hall Effect Digital Switch - TO-92S
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Infineon | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:4000 per Reel Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Infineon TLV49644TAXBXA1 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=TLV49644TAXBXA1&field4=Infineon&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--sensors--magnetic-hall-effect/tlv49644taxbxa1-infineon-7063359
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=TLV49644TAXBXA1&field4=Infineon&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--sensors--magnetic-hall-effect/tlv49644taxbxa1-infineon-7063359
Infineon TLV49644TAXBXA1 - Technical Attributes
Attributes Table
| Type: | Unipolar |
| Output Current: | 25A |
| Supply Voltage: | 3V to 26V |
| Supply Current: | 1.6mA |
| Rise Time: | 0.5µs |
| Fall Time: | 0.4µs |
| Operating Temp Range: | -40°C to +125°C |
| Storage Temperature Range: | -40°C to +150°C |
| No of Terminals: | 3 |
| Moisture Sensitivity Level: | 1 |
| Dimension: | 4 x 1.52 x 3.15 mm |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
8 Weeks
Quantity
Unit Price
4,000
$0.24
12,000+
$0.235
Product Variant Information section
Available Packaging
Package Qty:
4000 per Reel
Mounting Method:
Through Hole
