Diodes Incorporated | ZXCT1009T8TA

Manufacturer Part #

ZXCT1009T8TA

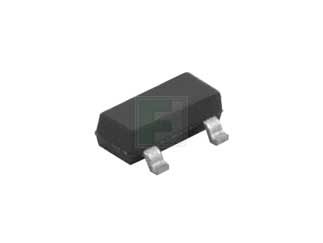

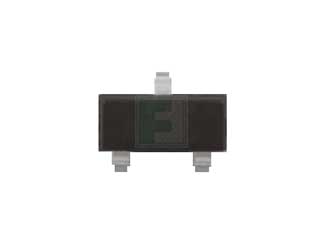

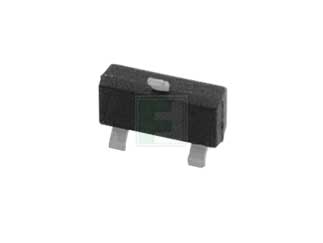

ZXCT1009 Series 300 kHz 4 uA 2.5 to 20 V High-Side Current Monitor - SOT-23

ECAD Model:
Mfr. Name: Diodes Incorporated
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Diodes Incorporated ZXCT1009T8TA - Technical Attributes
Attributes Table
Bandwidth: 300kHz
Quiescent Current: 4µA
Supply Voltage: 2.5V to 20V
Input Current: 100nA
Package Style:  SOT-23 (SC-59,TO-236)
Mounting Method: Surface Mount
Features & Applications

The ZXCT1009T8TA is a high side current sense monitor with ±1% accuracy and 10.2 mA output current.

It takes a high side voltage developed across a current shunt resistor and translates it into a proportional output current.

Features:

  • Low cost, accurate high-side current sensing
  • Output voltage scaling
  • Up to 2.5 V sense voltage
  • 2.5 V to 20 V supply range
  • 4 μA quiescent current
  • 1% typical accuracy
  • SOT23 and SM8 packages
  • AEC-Q100.3 qualified; ZXCT1009FTA only

Applications:

  • Battery chargers
  • Smart battery packs
  • DC motor control
  • Over current monitor
  • Power management
  • Level translating
  • Programmable current source
