Manufacturer Part #
HCS200/P

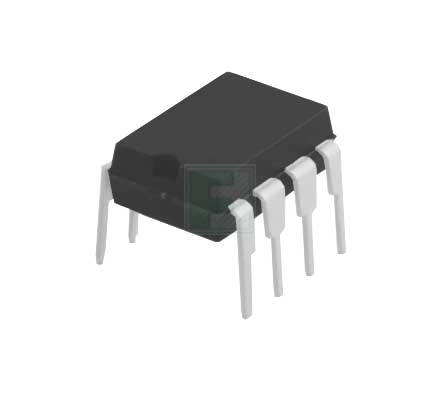

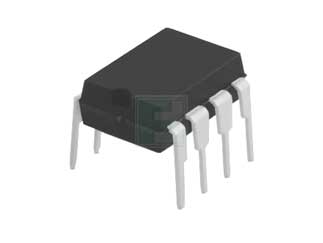

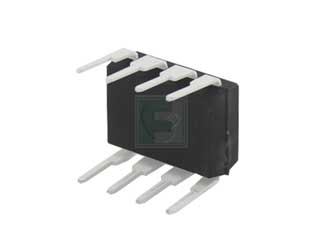

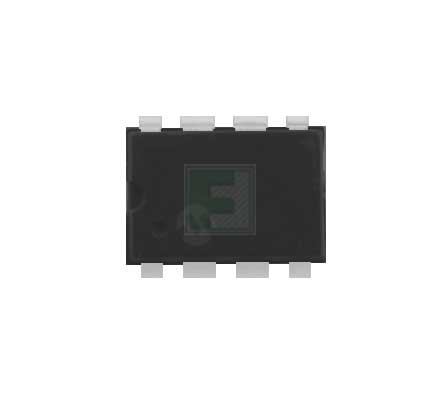

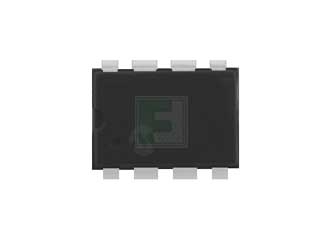

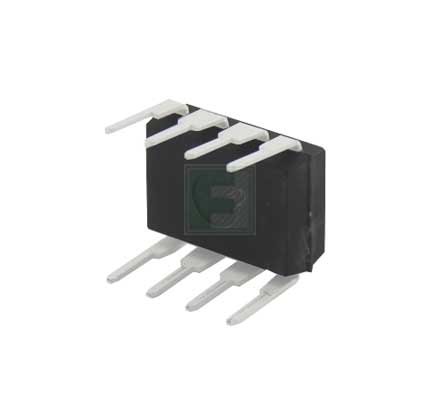

HCS200 Series 3.5 V to 13 V KEELOQ Code Hopping Encoder - PDIP-8
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:60 per Tube Package Style:PDIP-8 Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Microchip HCS200/P - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of Change: Qualification of Microchip Technology Gresham ? Fab 4 (GRTM) as a new fabrication location for HCS301, HCS300, HCS362, HCS200, PIC16F84, HCS512, HCS410, HCS361, HCS360, PIC16C57, HCS320, PIC16C54, PIC16HV540, CF775, PIC16F83 device families of 77K technology available in various packages.Reason for Change: To improve manufacturability and on time delivery performance by qualifying a new fabrication location (GRTM - FAB 4), which is a Microchip-owned facility that offers significant expansion potential to better meet future client demand.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=HCS200/P&field4=Microchip&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--system-management--voltage-supervisors/hcs200-p-microchip-1347111
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=HCS200/P&field4=Microchip&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--system-management--voltage-supervisors/hcs200-p-microchip-1347111
Microchip HCS200/P - Technical Attributes
| Package Style: | PDIP-8 |
| Mounting Method: | Through Hole |
Features & Applications
The HCS200 is a code hopping encoder designed primarily for Remote Keyless Entry (RKE) systems. The device utilizes the KEELOQ® code hopping technology, incorporating high security, a small package outline and low cost.
The HCS200 is a perfect replacement of fixed code devices in unidirectional remote keyless entry systems and access control systems.
Features:
Security:
- Programmable 28-bit serial number
- Programmable 64-bit crypt key
- Each transmission is unique
- 66-bit transmission code length
- 32-bit hopping code
- 28-bit serial number, 4-bit button status, low battery indicator transmitted
- Crypt keys are read protected
Operating:
- 3.5–13.0 V operation
- Three button inputs - seven functions available
- Selectable baud rate
- Automatic code word completion
- Low battery signal transmitted to receiver
- Non-volatile synchronization data
Other:
- Easy to use programming interface
- On-chip EEPROM
- On-chip oscillator and timing components
- Button inputs have internal pull-down resistors
- Low external component cost
View the complete HCSxx family of Motion Control IC's
Available Packaging
Package Qty:
60 per Tube
Package Style:
PDIP-8
Mounting Method:
Through Hole
