Manufacturer Part #
1N5825

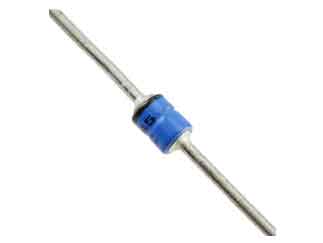

1N5825 series 40V 5A 2-Pin TOP HAT Schottky Rectifier
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:1 per Bulk Package Style:AXIAL Mounting Method:Through Hole |
||||||||||
| Date Code: | |||||||||||
Microchip 1N5825 - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
PCN Status:Final NotificationDescription of Change:Qualification of Microchip Technology Colorado ? Fab 5 (MCSO) as new fabrication site for various Power Schottky Barrier Diode products available in die sales and various packages.Reason for Change:To improve on-time delivery performances by qualifying MSCO as new fab site
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1N5825&field4=Microchip&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--diodes--scottky-rectifiers/1n5825-microchip-2054510
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1N5825&field4=Microchip&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--diodes--scottky-rectifiers/1n5825-microchip-2054510
Microchip 1N5825 - Technical Attributes
| Average Rectified Current-Max: | 5A |
| Peak Current-Max: | 500A |
| Reverse Voltage-Max [Vrrm]: | 40V |
| Reverse Current-Max: | 10mA |
| Forward Voltage: | 0.38V |
| Configuration: | Single |
| Diode Capacitance-Max: | 1470pF |
| Thermal Resistance: | 12°C/W |
| Operating Temp Range: | -65°C to +125°C |
| Storage Temperature Range: | -65°C to +125°C |
| Package Style: | AXIAL |
| Mounting Method: | Through Hole |
Available Packaging
Package Qty:
1 per Bulk
Package Style:
AXIAL
Mounting Method:
Through Hole
