Manufacturer Part #
ES2C

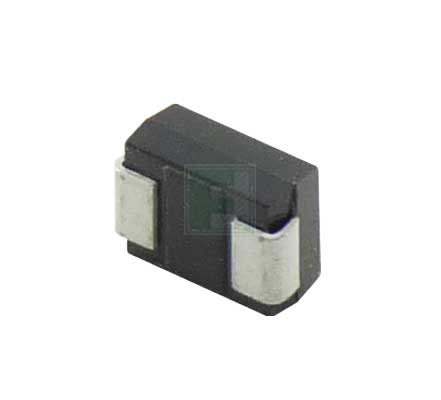

ES2C Series 2 A 150 V 20 ns Surface Mount Fast Recovery Rectifier - DO-214AA
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Package Style:SMB (DO-214AA) Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2339 | ||||||||||
Product Specification Section
onsemi ES2C - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=ES2C&field4=onsemi&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--diodes--ultrafast-rectifiers/es2c-onsemi-7263643
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=ES2C&field4=onsemi&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--diodes--ultrafast-rectifiers/es2c-onsemi-7263643
onsemi ES2C - Technical Attributes
Attributes Table
| Average Rectified Current-Max: | 2A |
| Reverse Voltage-Max [Vrrm]: | 150V |
| Reverse Current-Max: | 10µA |
| Forward Voltage: | 0.9V |
| Reverse Recovery Time-Max: | 20ns |
| Package Style: | SMB (DO-214AA) |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
19 Weeks
Quantity
Unit Price
3,000
$0.113
6,000
$0.111
12,000
$0.11
15,000+
$0.108
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Package Style:
SMB (DO-214AA)
Mounting Method:
Surface Mount
