Manufacturer Part #
STTH810FP

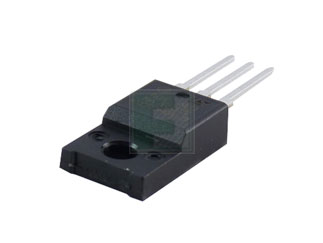

STTH810 Series 8 A 1.3 V 85 ns Ultrafast Recovery Diode Flange Mount-TO-220FPAC
| | |||||||||||
| | |||||||||||
| Mfr. Name: | STMicroelectronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Tube Package Style:TO-220FPAC Mounting Method:Flange Mount | ||||||||||
| Date Code: | 2450 | ||||||||||
Product Specification Section
STMicroelectronics STTH810FP - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
STMicroelectronics STTH810FP - Technical Attributes
Attributes Table
| Average Rectified Current-Max: | 8A |
| Peak Current-Max: | 60A |
| Reverse Voltage-Max [Vrrm]: | 1000V |
| Reverse Current-Max: | 5µA |
| Forward Voltage: | 1.3V |
| Configuration: | Single |
| Forward RMS Current [If rms]: | 30A |
| Diode Capacitance-Max: | 12pF |
| Reverse Recovery Time-Max: | 85ns |
| Thermal Resistance: | 5.8°C/W |
| Operating Temp Range: | 175°C |
| Storage Temperature Range: | -65°C to +175°C |
| Package Style: | TO-220FPAC |
| Mounting Method: | Flange Mount |
Features & Applications
Pricing Section
Global Stock:
1,800
Germany:
1,800
On Order:
0
Factory Lead Time:
15 Weeks
Quantity
Unit Price
50
$0.24
200
$0.23
1,000
$0.225
2,000
$0.22
6,250+
$0.215
Product Variant Information section
Available Packaging
Package Qty:
50 per Tube
Package Style:
TO-220FPAC
Mounting Method:
Flange Mount
