onsemi | AFGHL40T65SQ

Manufacturer Part #

AFGHL40T65SQ

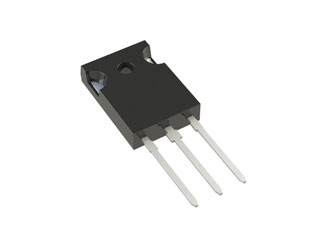

650 V 80 A 239 W Through Hole Trench Field Stop IGBT - TO-247-3L

ECAD Model:
Mfr. Name: onsemi
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
onsemi AFGHL40T65SQ - Technical Attributes
Attributes Table
CE Voltage-Max: 650V
Collector Current @ 25C: 80A
Power Dissipation-Tot: 239W
Gate - Emitter Voltage: ±20V
Pulsed Collector Current: 160A
Collector - Emitter Saturation Voltage: 1.6V
Turn-on Delay Time: 15ns
Turn-off Delay Time: 70ns
Qg Gate Charge: 68C
Leakage Current: 400nA
Input Capacitance: 2312pF
Thermal Resistance: 0.63°C/W
Operating Temp Range: -55°C to +175°C
No of Terminals: 3
Package Style:  TO-247-3
Mounting Method: Through Hole
