Manufacturer Part #

IHW50N65R5XKSA1

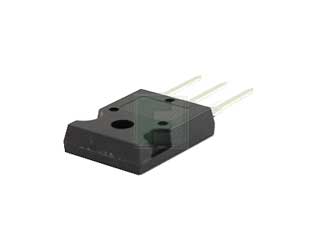

IHW50N65R5 Series 650 V 80 A 282 W Reverse Conducting IGBT - PG-TO-247-3

Mfr. Name: Infineon
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Technical Attributes
Attributes Table
CE Voltage-Max: 650V
Collector Current @ 25C: 80A
Power Dissipation-Tot: 282W
Gate - Emitter Voltage: 20V
Pulsed Collector Current: 150A
Collector - Emitter Saturation Voltage: 1.35V
Turn-on Delay Time: 30ns
Turn-off Delay Time: 210ns
Qg Gate Charge: 230nC
Reverse Recovery Time-Max: 137ns
Leakage Current: 100nA
Input Capacitance: 6140pF
Operating Temp Range: -40°C to +175°C
No of Terminals: 3
Package Style:  TO-247-3
Mounting Method: Through Hole
Pricing Section
Stock:
0
Minimum Order:
240
Multiple Of:
30
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
N/A
Total
$700.80
USD
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Quantity
Web Price
30
$2.92
480
$2.41
720
$2.38
960
$2.36
1,200+
$2.34
