Manufacturer Part #
PSMN5R6-100PS,127

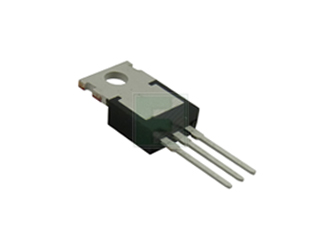

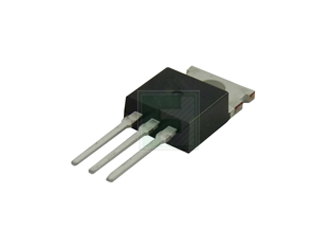

PSMN5R6 Series 100 V 15.7 mOhm 141 nC N-Channel Standard Level MOSFET - TO-220-3
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Nexperia | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Tube Package Style:TO-220-3 (TO-220AB) Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Nexperia PSMN5R6-100PS,127 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Obsolete
Obsolete
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=PSMN5R6-100PS,127&field4=Nexperia&field18=https://p1apac.futureelectronics.com/p/semiconductors--discretes--transistors--mosfets/psmn5r6-100ps-127-nexperia-3010955
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=PSMN5R6-100PS,127&field4=Nexperia&field18=https://p1apac.futureelectronics.com/p/semiconductors--discretes--transistors--mosfets/psmn5r6-100ps-127-nexperia-3010955
Nexperia PSMN5R6-100PS,127 - Technical Attributes
Attributes Table
| Fet Type: | N-Ch |
| No of Channels: | 1 |
| Drain-to-Source Voltage [Vdss]: | 100V |
| Drain-Source On Resistance-Max: | 5.6mΩ |
| Rated Power Dissipation: | 306W |
| Qg Gate Charge: | 141nC |
| Gate-Source Voltage-Max [Vgss]: | 20V |
| Drain Current: | 100A |
| Turn-on Delay Time: | 31ns |
| Turn-off Delay Time: | 83ns |
| Rise Time: | 46ns |
| Fall Time: | 34ns |
| Operating Temp Range: | -55°C to +175°C |
| Gate Source Threshold: | 3V |
| Height - Max: | 9.4m |
| Input Capacitance: | 8061pF |
| Package Style: | TO-220-3 (TO-220AB) |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
Singapore:
0
On Order:
0
Factory Lead Time:
N/A
Quantity
Unit Price
1,000
$1.80
2,000+
$1.78
Product Variant Information section
Available Packaging
Package Qty:
1000 per Tube
Package Style:
TO-220-3 (TO-220AB)
Mounting Method:
Through Hole
