Manufacturer Part #
MC9S12A128CPVE

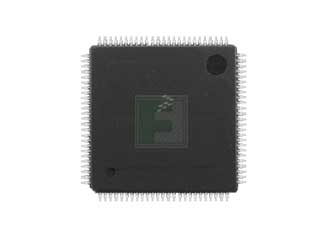

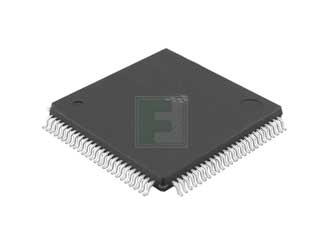

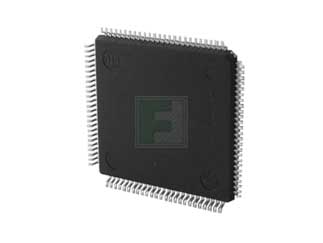

MC9S12A Series 8 kB RAM 128 kB Flash 16-Bit SMT Flash Microcontroller - LQFP-112
| | |||||||||||
| | |||||||||||
| Mfr. Name: | NXP | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:300 per Tray Package Style:LQFP-112 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2538 | ||||||||||
Product Specification Section
NXP MC9S12A128CPVE - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=MC9S12A128CPVE&field4=NXP&field18=https://p1na.futureelectronics.com/p/semiconductors--microcontrollers--16-bit-general-purpose/mc9s12a128cpve-nxp-4090395
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=MC9S12A128CPVE&field4=NXP&field18=https://p1na.futureelectronics.com/p/semiconductors--microcontrollers--16-bit-general-purpose/mc9s12a128cpve-nxp-4090395
NXP MC9S12A128CPVE - Technical Attributes
Attributes Table
| Family Name: | HCS12 |
| Core Processor: | HCS12 |
| Program Memory Type: | Flash |
| Flash Size (Bytes): | 128kB |
| RAM Size: | 8kB |
| Speed: | 25MHz |
| No of I/O Lines: | 59 |
| InterfaceType / Connectivity: | I2C/SCI/SPI |
| Peripherals: | I2C/On-Chip-ADC/PWM/SCI/SPI/Watchdog |
| Number Of Timers: | 8 |
| Supply Voltage: | 2.35V to 5.25V |
| Operating Temperature: | -40°C to +85°C |
| On-Chip ADC: | 16-chx10-bit |
| Watchdog Timers: | 1 |
| Package Style: | LQFP-112 |
| Mounting Method: | Surface Mount |
Features & Applications
The MC9S12A128CPVE is a 16-Bit General Purpose Microcontroller with operating speed of 25 MHz, 128 KB flash memory, 8 KB RAM and available in LQFP-112 pin surface mount package.
Features:
- Upward compatible with M68HC11 instruction set
- Interrupt stacking and programmer's model identical to M68HC11
- Instruction pipe
- Enhanced indexed addressing
- Multiplexed External Bus
- Memory
- 512 Kbyte Flash EEPROM
- 4.0 Kbyte EEPROM
- Two 8-channel Analog-to-Digital Converters
- 10-bit resolution
- Software compatible modules
Applications:
- Instrumentation
- Energy management
- Industrial control
- Robotics
- Safety equipment
- Security
Pricing Section
Global Stock:
300
USA:
300
Factory Lead Time:
16 Weeks
Quantity
Unit Price
300+
$21.68
Product Variant Information section
Available Packaging
Package Qty:
300 per Tray
Package Style:
LQFP-112
Mounting Method:
Surface Mount
