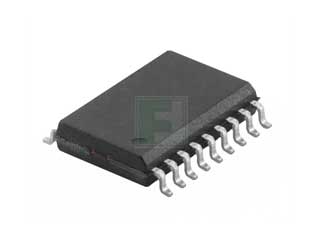

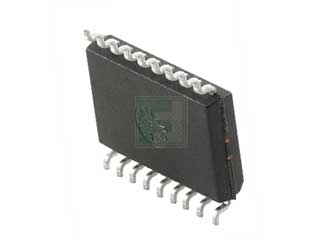

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

PIC24HJ12GP201-E/SO

PIC24H Series 1 kB RAM 12 kB Flash 16-Bit Microcontroller - SOIC-18

PIC24HJ12GP201-E/SO Datasheet PIC24HJ12GP201-E/SO Documentation AN1044--Data Encryption Routines for PIC24 Devices Programming Specification Errata Device Document
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	Microchip
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 42 per Tube Package Style: SOIC-18 Mounting Method: Surface Mount
Date Code:

Microchip PIC24HJ12GP201-E/SO - Technical Attributes

Family Name:	PIC24H
Core Processor:	PIC
Program Memory Type:	Flash
Flash Size (Bytes):	12kB
RAM Size:	1kB
Speed:	40MHz
No of I/O Lines:	13
InterfaceType / Connectivity:	I2C/SPI/UART
Peripherals:	POR/PWM/Watchdog
Number Of Timers:	3
Supply Voltage:	3V to 3.6V
Operating Temperature:	-40°C to +125°C
On-Chip ADC:	6-chx10-bit / 6-chx12-bit
Watchdog Timers:	1
Package Style:	SOIC-18
Mounting Method:	Surface Mount

Expand List

Collapse List

Features & Applications

Microchip provides solutions for the entire performance range of 8-bit, 16-bit, and 32-bit microcontrollers, with a powerful architecture, flexible memory technologies, comprehensive easy-to-use development tools, complete technical documentation and post design-in support through a global sales and distribution network. 16-bit PIC Microcontrollers & dsPIC Digital Signal Controllers. Microchip offers two 16-bit Microcontroller (MCU) families plus two 16-bit Digital Signal Controller (DSC) families that give you compatible options across a wide spectrum of price, performance and feature sets.

PIC24HJ12GP201-E/SO is part of the PIC24HJ12 Series family with 12 kB Flash as a 16-Bit Microcontroller. It can sustain standard temperature ranges from -40°C to +125°C and has 13 i/o pins in a SOIC package.

Features:

Operating Range:
- Up to 40 MIPS operation (@ 3.0-3.6 V).
- Industrial temperature range (-40°C to +85°C).
- Extended temperature range (-40°C to +125°C).
High-Performance CPU:
- Modified Harvard architecture.
- C compiler optimized instruction set.
- 16-bit wide data path.
- 24-bit wide instructions.
- Linear program memory addressing up to 4M instruction words.
- Linear data memory addressing up to 64 Kbytes.
- 71 base instructions, mostly 1 word/1 cycle.
- Sixteen 16-bit General Purpose Registers.
- Flexible and powerful addressing modes.
- Software stack.
- 16 x 16 multiply operations.
- 32/16 and 16/16 divide operations.
- Up to ±16-bit shifts for up to 40-bit data.
On-Chip Flash and SRAM:
- Flash program memory (12 KB).
- Data SRAM (1 KB RAM).
- Boot and General Security for Program Flash.
CMOS Flash Technology:
- Low-power, high-speed Flash technology.
- Fully static design.
- 3.3 V (±10%) operating voltage.
- Industrial and extended temperature.
- Low-power consumption.

PIC24H Series 1 kB RAM 12 kB Flash 16-Bit Microcontroller - SOIC-18
