Manufacturer Part #

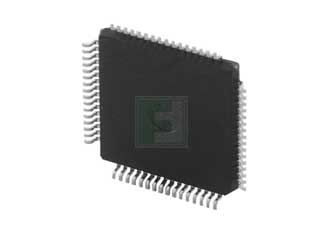

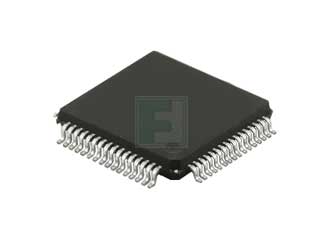

ATSAM3S2BA-AU
SAM3S Series 128 kB Flash 32 kB SRAM 64 MHz 32-Bit Microcontroller - QFP-64
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:160 per Tray Package Style:QFP-64 Mounting Method:Surface Mount |
||||||||||
| Date Code: | |||||||||||
Microchip ATSAM3S2BA-AU - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
Revision History:February 05, 2024: Issued initial notification.June 05, 2025: Issued final notification. Attached the Qualification Report. Provided estimated first ship date to be on June 30, 2025.Note: The change described in this PCN does not alter Microchip's current regulatory compliance regarding the material content of the applicable product.Description of Change:Qualification of ANAP as an additional assembly site for selected ASTAM3Sxx, ATSAM3Nxx and AT91SAM7Sxx device families available in 64L LQFP (10x10x1.4mm) package.
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=ATSAM3S2BA-AU&field4=Microchip&field18=https://p1na.futureelectronics.com/p/semiconductors--microcontrollers--32-bit/atsam3s2ba-au-microchip-4038191
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=ATSAM3S2BA-AU&field4=Microchip&field18=https://p1na.futureelectronics.com/p/semiconductors--microcontrollers--32-bit/atsam3s2ba-au-microchip-4038191
Microchip ATSAM3S2BA-AU - Technical Attributes
| Family Name: | SAM3S |
| Core Processor: | ARM Cortex M3 |
| Program Memory Type: | Flash |
| Flash Size (Bytes): | 128kB |
| RAM Size: | 32kB |
| Speed: | 64MHz |
| No of I/O Lines: | 47 |
| InterfaceType / Connectivity: | I2C/MMC/SPI/SSC/UART/USART/USB |
| Peripherals: | Brown-out Detect/DMA/I2S/POR/PWM/Reset/Watchdog |
| Supply Voltage: | 1.62V to 1.95V |
| Operating Temperature: | -40°C to +85°C |
| On-Chip ADC: | 10-chx10-bit / 10-chx12-bit |
| On-Chip DAC: | 2-chx10-bit |
| Watchdog Timers: | 1 |
| Package Style: | QFP-64 |
| Mounting Method: | Surface Mount |
Features & Applications
Available Packaging
Package Qty:
160 per Tray
Package Style:
QFP-64
Mounting Method:
Surface Mount
