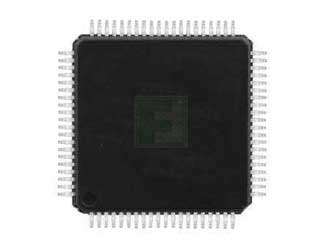

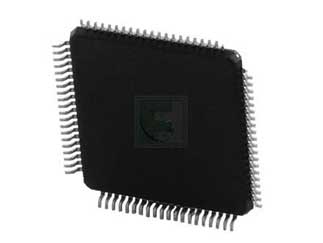

Renesas | UPD78F0495GK-GAK-AX

UPD78F0495GK-GAK-AX microcontroller features highly optimized, high-performance, 150 nm flash process technology that provides the microcontroller with low power operation at full speed (10 MHz) and very low power consumption in Standby/HALT modes (1 μA typical in STOP, 2.4 μA typical in HALT mode with 32 kHz/real-time clock running).

Dense flash memory provides 6 bits ECC on every 32-bit word to protect against any rare flash data retention failures in long-term field usage (15-20 years). LCD-resistive ladder drive allows up to 160 (x 4) or 288 (x 8) LCD segment display. High-performance CPU processing, generous GP I/O lines and peripheral functions enable the electronics hardware/software designer greater flexibility and ease-of-use.

Features:

• Low-power, 8-bit 78K0 flash MCU, 1.8 V to 5.5 V operation
• Low-power performance, 2.2 mA typical @10 MHz
• 60 KB flash memory, 2 KB SRAM
• Internal 8 MHz (+/-5%) main and 240 kHz watchdog oscillators
• 1 ch 16-bit and 6 ch 8-bit timers
• Real-time counter (RTC) clock/calendar function, 2.4 μA typical in 32 kHz HALT mode
• Hardware safety features:
  • windowed watchdog timer (with independent 240 kHz internal OSC)
  • power on clear (POC) reset
  • low-voltage indicator (LVI)
• High-resolution ADC enables highprecision reading of analog input for instrumentation and measurements systems
• 3 ch 16-bit sigma-delta A/D convertor
• Flexible LCD controller/driver for low-cost, handheld portable designs
• Long battery life and energy-efficient product implementation

Applications:

• Consumer healthcare equipment:
  • Blood glucose meters
  • Thermometers
  • Blood pressure monitors
• Building management:
  • Thermostats
  • Security
  • HVAC control panels
• Irrigation control panels
• Water filter control panels
