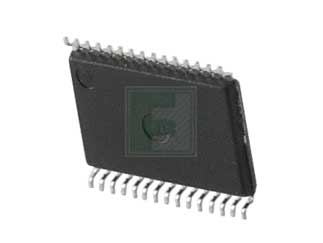

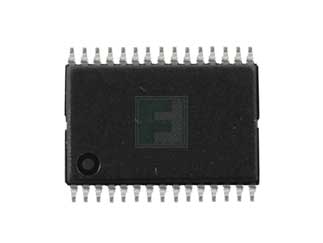

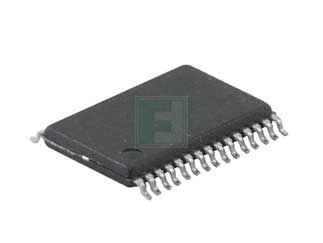

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

UPD78F0578MC-CAB-AX

78K0/Kx2-L Series 32 kB Flash 1 kB RAM 10 MHz 8 Bit Microcontroller - SSOP-30

UPD78F0578MC-CAB-AX Datasheet UPD78F0578MC-CAB-AX Documentation Programming Guide Release Note User Manual Catalog Application Note
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	Renesas
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 210 per Tray Package Style: SSOP-30 Mounting Method: Surface Mount
Date Code:

Renesas UPD78F0578MC-CAB-AX - Technical Attributes

Family Name:	78K
Core Processor:	78K0
Program Memory Type:	Flash
Flash Size (Bytes):	32kB
RAM Size:	1kB
Speed:	10MHz
No of I/O Lines:	24
InterfaceType / Connectivity:	CSI/I2C/UART
Peripherals:	CSI/I2C/On-Chip-ADC/PWM/UART/Watchdog
Number Of Timers:	2
Supply Voltage:	1.8V to 5.5V
Operating Temperature:	-40°C to +85°C
On-Chip ADC:	7-chx10-bit
Watchdog Timers:	1
Package Style:	SSOP-30
Mounting Method:	Surface Mount

Expand List

Collapse List

Features & Applications

UPD78F0578MC-CAB-AX 8-bit low-power all flash microcontrollers are part of low power microcontroller lineup, which ranges from 8-bit to 16-bit and 32-bit microcontrollers. These devices scale in performance, flash memory sizes, common peripheral sets and package size options.

Features:

High-performance, low-power 8-bit 78K0 flash
32 KB flash memory, 1 KB SRAM
Internal oscillator selectable for 4 MHz or 8 MHz
Versatile serial interfaces (UART, CSI/SPI, I2C)
Up to 11 ch 10-bit A/D converter
4 ch 8-bit timer/counters and 1 ch 16-bit timer/counter
Real-time counter (calendar function)
Low power consumption (typical values):
- 0.3 μA in STOP mode
- 0.7 μA with 32 kHz standby mode with real-time counter (clock calendar) running
- 260 μA in 1 MHz CPU full-operational mode

Applications:

Industrial controls
Building management systems
Test and measurement equipment
Consumer healthcare equipment
