Manufacturer Part #
LTL-307A

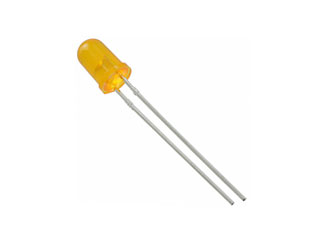

Amber Ø 5.85 x 8.6 mm 50° Diffused 29 mcd 2.6 V Through Hole LED - T-1 3/4
| | |||||||||||
| | |||||||||||
| Mfr. Name: | LITEON | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Bag Package Style:T-1 3/4 Mounting Method:Through Hole | ||||||||||
| Date Code: | 2237 | ||||||||||
LITEON LTL-307A - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of the Change: LiteON-OPTO TH lamp would like to update luminous intensity value in datasheet of LTL-307A refer to new dice performance due to original dice supplier OPTOTECH stopped supplying original dice. Reason for Change: Please refer to PCN-20-1106-02_Rev 04, OPTOTECH stopped supplying original dice, so we updated the luminous intensity for LTL-307A based on the new dice performance.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=LTL-307A&field4=LITEON&field18=https://p1na.futureelectronics.com/p/semiconductors--optoelectronics--leds/ltl-307a-liteon-6086876
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=LTL-307A&field4=LITEON&field18=https://p1na.futureelectronics.com/p/semiconductors--optoelectronics--leds/ltl-307a-liteon-6086876
LITEON LTL-307A - Technical Attributes
| No of LEDs: | 1 |
| Color: | Amber |
| Lens Type: | Diffused |
| Forward Voltage: | 2.6V |
| Forward (Drive) Current: | 80mA |
| Intensity: | 29mcd |
| Viewing Angle: | 50° |
| Wavelength: | 610nm |
| Rated Power: | 60mW |
| Operating Temp Range: | -55°C to +100°C |
| Storage Temperature Range: | -55°C to +100°C |
| Dimension: | H 8.6mm x D 5.85mm |
| Package Style: | T-1 3/4 |
| Mounting Method: | Through Hole |
Available Packaging
Package Qty:
1000 per Bag
Package Style:
T-1 3/4
Mounting Method:
Through Hole
