Manufacturer Part #

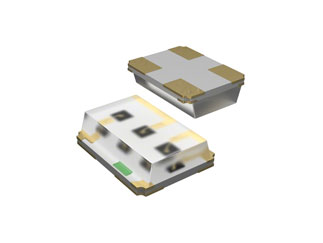

LTST-C19FD1WT
Blue/Red/Green 2.1 x 1.6 x 0.55 mm 130° 180/450/180 mcd 3.5/3.5/2 V Chip LED
| | |||||||||||
| | |||||||||||
| Mfr. Name: | LITEON | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2438 | ||||||||||
Product Specification Section
LITEON LTST-C19FD1WT - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
Material Change
05/20/2024 Details and Download
Description of Change:Lite-On will be introducing the additional dice material for chip LED and the affected part numbers are shown in this notice.Reason of Change:In an attempt to mitigate any potential risk to supply continuity, Lite-On has proactively identified alternative bill of materials to improve upon its current sources. The alternative dice has been qualified in Lite-On materials pool.
Part Status:
Active
Active
LITEON LTST-C19FD1WT - Technical Attributes
Attributes Table
| No of LEDs: | 3 |
| Color: | Blue / Green / Red |
| Lens Type: | Diffused |
| Forward Voltage: | 3.5V/3.5V/2V |
| Forward (Drive) Current: | 20mA/20mA/30mA |
| Intensity: | 180mcd/450mcd/180mcd |
| Viewing Angle: | 130° |
| Wavelength: | 468nm/520nm/611nm |
| Rated Power: | 80*80*75mW |
| Operating Temp Range: | -20°C to +80°C |
| Storage Temperature Range: | -30°C to +100°C |
| Dimension: | H 0.55mm x L 2.1mm x W 1.6mm |
| Moisture Sensitivity Level: | 3 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
15,000
USA:
15,000
On Order:
0
Factory Lead Time:
22 Weeks
Quantity
Unit Price
3,000
$0.109
6,000+
$0.107
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Mounting Method:
Surface Mount
