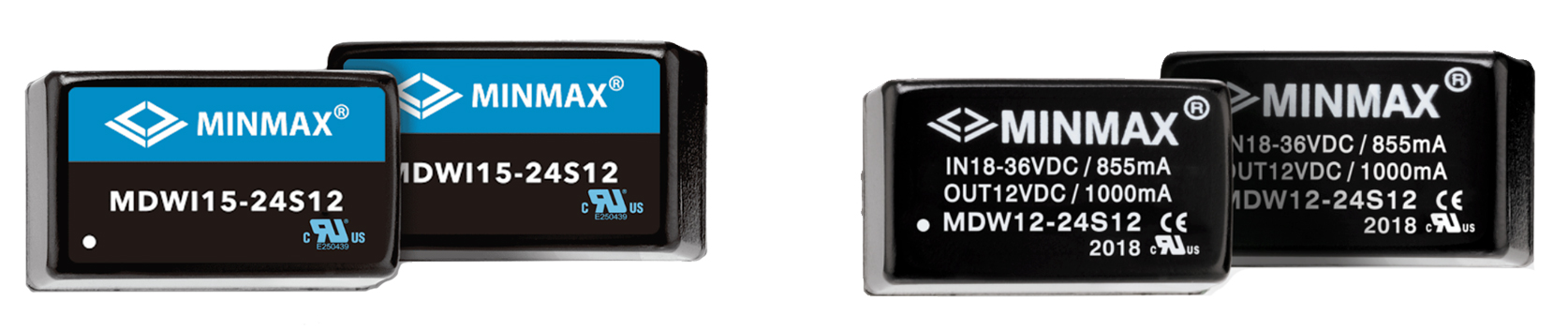

MINMAX MDW(I)15 & MDW(I)12 DC-DC Converters

Match your choice of converter with your choice of application

MINMAX supplies the MDW(I)15 and MDW(I)12 DC-DC converter families, offered in 15 W and 12 W respectively. They feature wide voltage and ambient temperature ranges in addition to the necessary safety features to enable design flexibility in key end designs.

These DC-DC converters occupy just 0.5in2 of PCB space within a small encapsulated industry-standard DIP-16 package, making them ideal for space-constrained applications.

Both the MDW(I)15 and MDW(I)12 converters by MINMAX come in many different variations with wide voltage ranges; the MDW12 & MDW15 being a 2:1 input voltage range and the MDWI12 & MDWI15 featuring an ultra-wide 4:1 input voltage range.

Features
  • Smallest Encapsulated 12/15 W Converter
  • Industrial Standard DIP-16 Package
  • Wide 2:1 Input Voltage Range MDW12&15; Ultra-wide 4:1 Input Voltage Range MDWI12&15
  • Fully Regulated Output Voltage
  • I/O Isolation 1500 VDC
  • Operating Ambient Temp. Range -40℃ to +85℃

  • Low No Load Power Consumption
  • No Min. Load Requirement
  • Under-voltage, Overload and Short Circuit Protection
  • Shielded Metal Case with Insulated Baseplate
  • Conducted EMI EN 55032 Class A Approved
  • UL/cUL/IEC/EN 62368-1 Safety Approval & CE Marking





Specifications

Output Voltage Accuracy ±1.0% max.
Line Regulation ±0.2% typ.
Load Regulation ±1.0% max.
Ripple & Noise (20MHz) 70mVp-p typ.
Efficiency MDW12/MDWI12: Up to 88% | MDW15/MDWI15: Up to 87%
I/O Isolation Voltage 1500VDC min.
I/O Isolation Capacitance 2200pF max.
Operating Ambient Temp. Range -40℃ to +85℃ (See Derating Curve)
Short Circuit Protection Continuous (Auto. Recovery)
Case Material Metal With Non-Conductive Baseplate
Safety Approval UL/cUL/IEC/EN 62368-1, CB-Report, CE Marking
