Panasonic Industry — Hybrid Aluminum Electrolytic Capacitors: EEH-ZS, EEH-ZT & EEH-ZU Series

Panasonic Industry



Panasonic Industry Hybrid Aluminum Electrolytic Capacitors – EEH-ZS, EEH-ZT & EEH-ZU Series

High performance, high reliability capacitor solutions for many industry demands

Panasonic Industry’s EEH-ZS, EEH-ZT, and EEH-ZU Series Conductive Polymer Hybrid Aluminum Electrolytic Capacitors deliver the performance of polymer capacitors with the safety and reliability of aluminum electrolytic technology. Engineered to withstand high temperatures and ripple currents, these Hybrid Capacitors are AEC-Q200 qualified and ideal for automotive and other demanding applications.

With options available in surface mount and leaded through-hole configurations, these capacitors offer design flexibility along with high endurance, low ESR, and vibration-proof variants for enhanced durability in harsh environments.


EEH-ZS Series – Surface Mount, 125°C, Vibration-Proof

Features

  • Now Available in Smaller Case Size: 10.0mm x 12.5mm
  • Surface Mount Package
  • 4000-Hour Life at 125°C
  • High Ripple Current and Large Capacitance
  • Vibration-Proof Variants for Parts with 8mm Diameter or Greater
  • Broad Operating Temperature: -55°C to +125°C
  • Up to 63 VDC Operating Voltage
  • AEC-Q200 Compliant
  • RoHS and REACH Compliant

Benefits

  • High Endurance Rating
  • High-Performance
  • Safe Operation
  • Automotive Quality
  • Vibration-Proof Variants Available

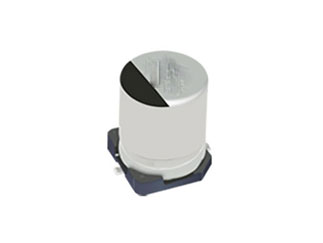

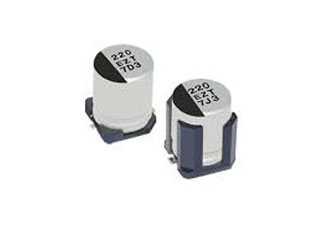

EEH-ZT Series – Leaded THT, Ammo Pack Option

Features

  • Leaded
  • Ammo Pack Taping for THT Type: Only Ø8 and Ø10 Products
  • High Ripple and Low ESR
  • AEC-Q200 Compliant
  • RoHS and REACH Compliant

Benefits

  • Flexible Packaging for Automated Assembly
  • High-Performance
  • Safe Operation
  • Automotive Quality

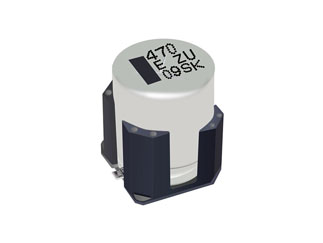

EEH-ZU Series – Surface Mount, High Temp Reflow, 135°C

Features

  • Surface Mount Package
  • High Temperature Lead-Free Reflow
  • Endurance: 4000-Hour Life at 135°C
  • Low ESR and High Ripple Current
  • Nominal Capacitance Range: 100 to 560 µF
  • Broad Operating Temperature: -55°C to +135°C
  • High Withstand Voltage: 25 to 63 VDC
  • Vibration-Proof Product Available Upon Request: 6mm Diameter or Greater
  • AEC-Q200 Compliant
  • RoHS / REACH Compliant

Benefits

  • Long Life at High Operating Temperature
  • High Performance
  • Safe Operation
  • Automotive Quality
  • Vibration-Proof Variants Can Withstand Shock of Up to 30G
  • Standard Parts Can Withstand Shock of 10G Maximum
