Renesas RAA489300 & RAA489301 3-Level Buck Controllers, High-Efficiency & Flexible

High-performance, single-inductor buck controllers with passthrough mode, seamless DCM/CCM transitions, and advanced R3™ technology for efficiency and compact designs

The Renesas RAA489300 and RAA489301 are high-performance 3-level buck controllers designed for applications requiring compact, efficient, and reliable voltage regulation. Both devices leverage Renesas R3™ Technology to enable:

  • Highly efficient light-load operation
  • Fast transient response
  • Seamless switching between discontinuous (DCM) and continuous (CCM) conduction modes

They also feature passthrough mode (PTM) in both forward and reverse directions for maximum efficiency when input and output voltages are identical. Independent control loops for input/output voltage and current provide precision, flexibility, and safety.

Both controllers include robust protection features (OCP, OVP, UVP, OTP) and support SMBus/I2C serial communication for customizable system-level parameters.



RAA489300

Features

  • Single-inductor 3-level buck controller
  • Patented flying capacitor modulator for smooth mode transition
  • Input voltage range: 4.5 V–57.6 V
  • Output voltage range: 3 V–54.912 V
  • Programmable switching frequency: up to 400 kHz (800 kHz effective at switching node)
  • EXT5V pin for 5 V/10 V gate drive generation
  • Low shutdown current: 25 µA
  • Passthrough mode (PTM) in forward/reverse directions
  • Pre-biased output support with soft-start
  • Input/output current monitoring
  • Protection: OCP, OVP, UVP, OTP
  • SMBus/I2C compatible
  • 32-lead TQFN, 4 mm × 4 mm

Applications

  • USB PD 3.0x systems
  • Docking stations
  • Battery-powered mobile devices
  • Renewable energy systems
  • Robots and drones
  • Security surveillance
  • Medical equipment

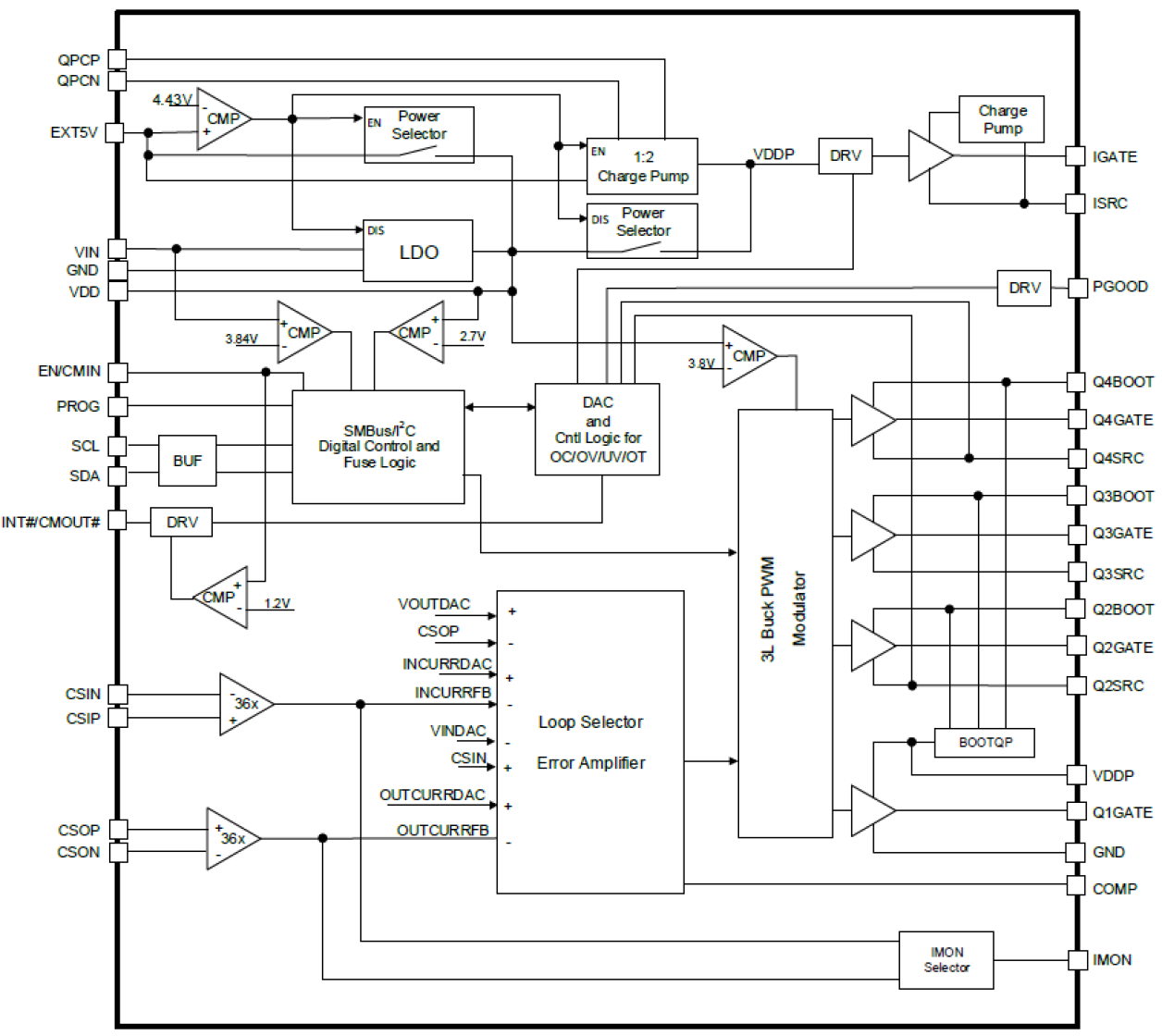

RAA489300 Block Diagram

Renesas RAA489300 Block Diagram



RAA489301

Features

  • Single-inductor 3-level buck controller
  • Proprietary flying capacitor modulator for smooth mode transition
  • Input voltage range: 4.5 V–24 V
  • Output voltage range: 3 V–24 V
  • Programmable switching frequency: up to 367 kHz (734 kHz effective at switching node)
  • EXT5V pin for 5 V/10 V gate drive generation
  • Low shutdown current: 25 µA
  • Passthrough mode (PTM) in both directions
  • Pre-biased output support with soft-start
  • Input/output current monitoring
  • MOSFET drivers with adaptive shoot-through protection
  • Complete protection: OCP, OVP, UVP, OTP
  • SMBus/I2C compatible
  • 32-lead TQFN, 4 mm × 4 mm

Applications

  • CPU power supply pre-regulator
  • USB PD 3.0/3.1 systems
  • Robots and drones
  • Security surveillance



RAA489301 Block Diagram

Renesas RAA489301 Block Diagram




Renesas RAA489300 & RAA489301 Buck Controllers
