STMicroelectronics



X-Nucleo-GNSS1A1
Teseo-LIV3F and STM32 Nucleo Ecosystem: the perfect match.
For development on STM32-based design
Compatible with STM32 Nucleo boards and Arduino boards
Protocols: NMEA
Interfaces: 1 UART, 1 DDC (I2C compliant), Digital I/O configurable time-pulse, 1 EXTINT input for Wake-up.

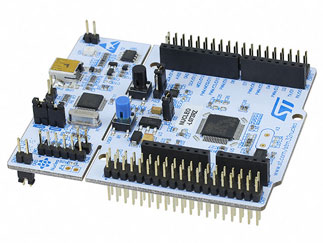

Supported STM32 Nucleo boards: NUCLEO-F401RE, NUCLEO-L073RZ, NUCLEO-L476RG



EVB-LIV3F
TESEO-LIV3F Evaluation starts here. Complete, fast and easy.
For evaluation of LIV3F GNSS solution
Protocols: NMEA
Interfaces: 1 UART, 1 DDC (I2C compliant)



TESEO SUITE
Free, Powerful, Easy PC-Windows SW Suite.
For evaluation, development and FW updates.
View/Record/Playback: NMEA & DEBUG
View Graphics charts: Position / CN0 / Sky view / Map view / Send Commands
Dedicated panels: Assisted GPS / FW configurator TEST plan
Embedded tools: FW Upgrade



TESEO-LIV3F Key Features and Benefits
  • Tiny (9.7 x 10.1 x 2.5mm LCC18 standard package) and easy-to-use standalone GNSS module with integrated 16Mb Flash and multi-constellation world-class GNSS receiver performance
  • Integrated flash for data storage and SW execution enabling free FW upgrades, flexibility in configuration, performance improvement, longer lifetime
  • Most Powerful ARM9 processor allowing concurrent functions
  • High level of integration (GNSS receiver, power supply, flash, crystal oscillator, RTC) enabling cost-competitive solution and top performance with a minimal BOM
  • Superior accuracy thanks to its embedded 26-MHz temperature-compensated crystal oscillator (TCXO) and a reduced Time To First Fix (TTFF) relying on its dedicated 32- kHz real-time clock (RTC)
  • Pre-Certified RF Module (CE, FCC, IC) simplies design and drastically reduces time to market and eliminates design risk, accommodating the typically very short IoT design schedules
  • Pre-loaded applications: datalogging, geofencing, odometer, enabling several IoT and asset/fleet tracking applications
