TE Connectivity AmbiMate MS4 Series Sensor Module Development Kit

Dev kits provide for easy integration of ready-made four-sensor modules

TE Connectivity AmbiMate MS4 Series Sensor Module Development Kits allow a developer, with use of downloadable code, to connect to either a Raspberry Pi or Arduino development platform and start collecting sensor data within 30 minutes.

The TE AmbiMate MS4 sensor module series provides an application-specific set of sensors on a ready-to-attach PCB assembly for easy integration into a host product. Use of the AmbiMate module frees up design resources and accelerates time-to-market, providing a ready-made solution with four core sensors for motion, light, temperature and humidity measurement.

Additional options in the MS4 series include a Volatile Organic Compounds (VOC) sensor for air-quality monitoring, an equivalent carbon dioxide (eCO2) sensor of occupancy detection, and a microphone for sound detection.

All MS4 series sensor modules offer the flexibility of a common seven-position connection. This allows the designer to layout a single PCB footprint accommodating all the available sensor configurations in production.



Kit part number AmbiMate part number Four core sensor functions VOC sensing eCO2 sensing Microphone
2331211-1
Datasheet
2314277-1 Yes
2331211-2
Datasheet
2314277-2 Yes     Yes
2331211-3
Datasheet
2314291-1 Yes Yes Yes



Features
  • 3.3V DC input
  • I2C interface
  • Interrupt-driven Event pin for motion detection
Applications
  • Indoor lighting
  • Building automation
  • Connected home
  • Air quality
  • Energy management
  • Workspace comfort controls
  • Zonal environmental controls

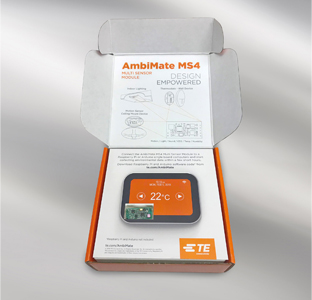

Chip_AS_TE-AmbiMate
