Future Picks — Hirose Electric Connectors

Precision Connections for Demanding Designs

Versatility at its best

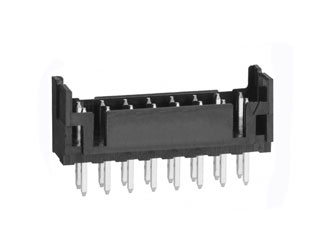

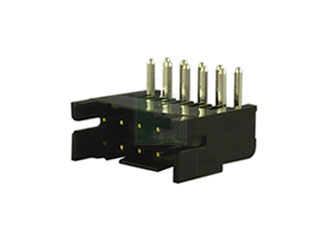

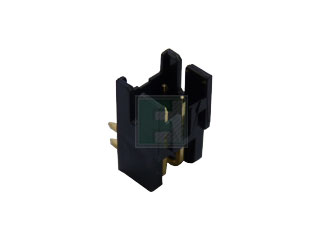

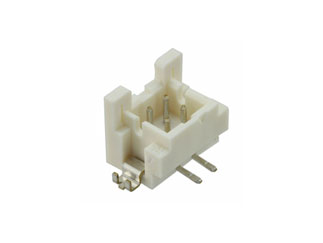

Hirose Electric’s DF11 Series is a versatile 2.0 mm pitch, double-row board-to-wire connector designed to simplify a wide range of connection needs. It supports multiple configurations, including board-to-board and in-line connections, and is available in both right-angle and vertical orientations. The connector features a reinforced four-wall box structure with guide ribs that prevent incorrect mating and ensure stable socket insertion. The DF11 series is available in a wide variety of contact positions—from 4 to 40—and supports current ratings from 0.5 A up to 2.0 A per pin, depending on the configuration.

Features

Applications

• Business equipment
  • Copy machines
  • Printers

Future Electronics offers a wide selection of Hirose Electric connectors across key categories including board-to-board, wire-to-board, and FPC/FFC connectors. Top-selling series include the DF51K (compact board-to-board with center lock), DF60 (high-current wire-to-board up to 40 A), and FH62/FH67 (rugged FPC connectors with secure locking). We also carry their high-speed options like the ER8 (0.8 mm pitch) and hybrid connectors such as the BM28, which supports both power and USB 3.1 data. These parts are ideal for industrial, automotive, and compact consumer applications.
