Name: Vishay VS-40CPQ060-N3
Brand: Vishay
SKU: 8107045
Price: 1.99 USD
Availability: InStock

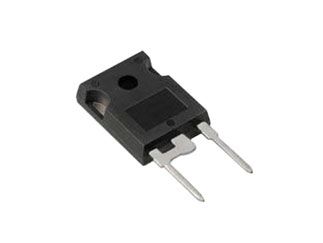

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

VS-40CPQ060-N3

Schottky Diodes & Rectifiers Schottky - TO-247-e3

VS-40CPQ060-N3 Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free. Learn more about ECAD model.
Mfr. Name:	Vishay
Standard Pkg:	Product Variant Information section Available Packaging Tube Reel TubeSelected Variant Qty: 25+ / Unit Price: $1.99 / Stock: 74,625 Qty: 25+$1.99 Stock: 74,625 Tube Qty: 500+ / Unit Price: $1.99 / Stock: 0 Qty: 25+$1.99 Stock: 0 Tube Qty: 500+ / Unit Price: $1.99 / Stock: 0 Qty: 25+$1.99 Stock: 0 Tube Qty: 500+ / Unit Price: $1.92 / Stock: 0 Qty: 500+$1.92 Stock: 0 Reel Qty: 500+ / Unit Price: $1.99 / Stock: 0 Qty: 25+$1.99 Stock: 0 Package Qty: 25 per Package Style: TO-247AC Mounting Method: Through Hole
Date Code:	2425

Average Rectified Current-Max:	40A
Peak Current-Max:	3200A
Reverse Voltage-Max [Vrrm]:	60V
Reverse Current-Max:	1.7mA
Forward Voltage:	0.68V
Diode Capacitance-Max:	1600pF
Thermal Resistance:	0.63°C/W
Operating Temp Range:	-55°C to +150°C
Configuration:	Dual
Package Style:	TO-247AC
Mounting Method:	Through Hole

Global Stock:

74,625

Singapore:

74,625

Factory Stock:

Factory Lead Time:

11 Weeks

Quantity

Unit Price

$1.99

100

$1.96

375

$1.93

625

$1.92

1,250+

$1.88
