Manufacturer Part #

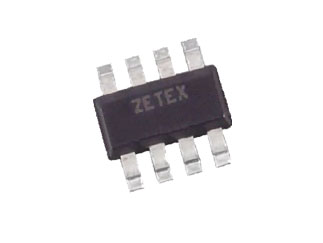

ZXMS6005DT8TA
Dual N-Channel 60 V 250 mOhm 2.13 mW Silicon Surface Mount Mosfet - SM-8
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Diodes Incorporated | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Reel Package Style:SM-8 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Diodes Incorporated ZXMS6005DT8TA - Product Specification
Shipping Information:
ECCN:
PCN Information:
*Update to Future PCN 40708*REV01: 1) Clarified part marking diagrams for SM-8 devices, and SOT26 device (P/N DRDC3105E6-7 only)2) Adding two affected part numbers: ZHCS2000TA and ZLLS2000TA (both in SOT-26 package)In order to improve product traceability, Diodes will add date code information to the part marking of part numbers. Affected products are manufactured in SM-8, SOT-26 or SOT-223 packages at Diodes’ internal Assembly & Test sites. There is no change to fit or function of the affected products.
Addition of Date Code Information to Part MarkingIn order to improve product traceability, Diodes will add date code information to the part marking of below listed part numbers.Affected products are manufactured in SM-8, SOT-26 or SOT-223 packages at Diodes’ internal Assembly & Test sites.There is no change to fit or function of the affected products.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=ZXMS6005DT8TA&field4=Diodes Incorporated&field18=https://p1emea.futureelectronics.com/de/p/semiconductors--discretes--transistors--mosfets/zxms6005dt8ta-diodes-incorporated-3063083
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=ZXMS6005DT8TA&field4=Diodes Incorporated&field18=https://p1emea.futureelectronics.com/de/p/semiconductors--discretes--transistors--mosfets/zxms6005dt8ta-diodes-incorporated-3063083
Diodes Incorporated ZXMS6005DT8TA - Technical Attributes
| Fet Type: | Dual N-Ch |
| No of Channels: | 2 |
| Drain-to-Source Voltage [Vdss]: | 60V |
| Drain-Source On Resistance-Max: | 250mΩ |
| Rated Power Dissipation: | 2.13mW |
| Drain Current: | 1.8A |
| Turn-on Delay Time: | 6µs |
| Turn-off Delay Time: | 34µs |
| Rise Time: | 14µs |
| Fall Time: | 19µs |
| Operating Temp Range: | -40°C to +150°C |
| Technology: | Si |
| Height - Max: | 1.7mm |
| Length: | 6.7mm |
| Package Style: | SM-8 |
| Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
1000 per Reel
Package Style:
SM-8
Mounting Method:
Surface Mount
