Manufacturer Part #

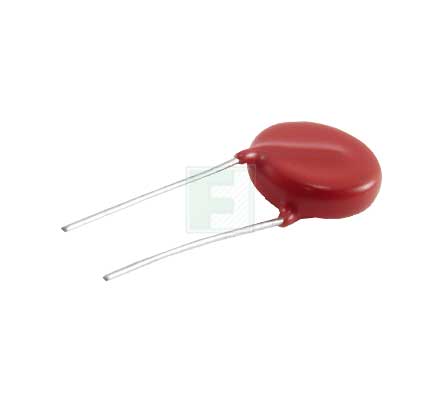

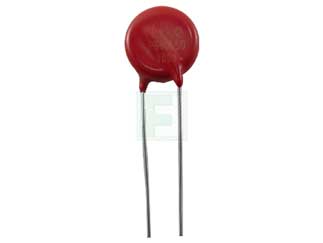

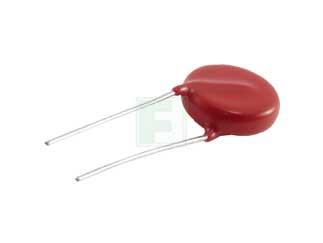

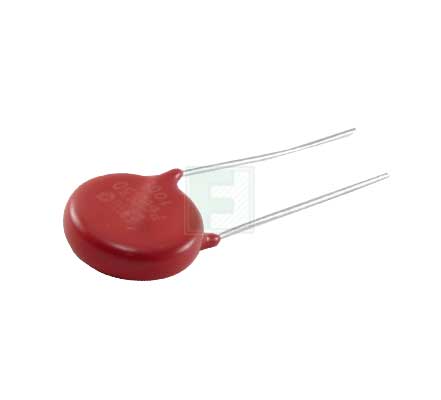

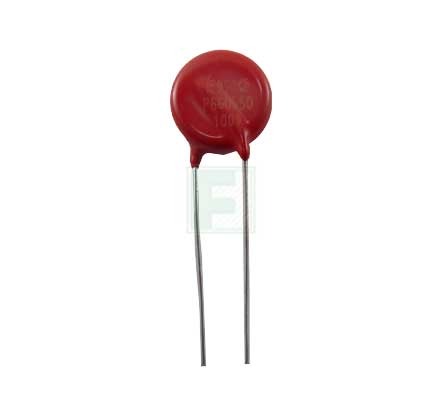

V150LA10AP
LA Series 200 VDC 150 V RMS 395 V Clamp 4500 A 800 pF Radial Lead Varistor
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:700 per Box | ||||||||||
| Date Code: | 2525 | ||||||||||
Littelfuse V150LA10AP - Product Specification
Shipping Information:
ECCN:
PCN Information:
Littelfuse would like to notify you of a change related to LA, UltraMOV, ZA and C-III Series Radial Lead Varistors? inner electrode as shown in this notice.This change has no impact to product?s original electrical parameters, dimensions, quality, reliability and part numbers. New product samples and qualification test report are available upon request.This change will be implemented for LA & UltraMOV Series starting from April 1st, 2024 and ZA & C-III Series starting from July 1st, 2024. During the change transition period, customers are expected to receive current and new products until current product inventory in Littelfuse warehouses anddistribution channels are depleted.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=V150LA10AP&field4=Littelfuse&field18=https://p1na.futureelectronics.com/en/p/electromechanical--circuit-protection--varistors-mov-mlv/v150la10ap-littelfuse-9386046
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=V150LA10AP&field4=Littelfuse&field18=https://p1na.futureelectronics.com/en/p/electromechanical--circuit-protection--varistors-mov-mlv/v150la10ap-littelfuse-9386046
Littelfuse V150LA10AP - Technical Attributes
| Capacitance: | 800pF |
| Clamping Voltage-Max: | 395V |
| Peak Output Current: | 4500A |
| Rated Voltage: | 200V |
| RMS Voltage-Max: | 150V |
| Varistor Voltage Range: | 216V to 264V |
| Current Rating: | 1mA |
| Energy: | 45J |
| Insulation Resistance: | 1000MΩ |
| Operating Temp Range: | -55°C to +85°C |
| Storage Temperature Range: | -55°C to +125°C |
| No of Terminals: | 2 |
| Diameter: | 14mm |
Available Packaging
Package Qty:
700 per Box
