Manufacturer Part #
5-747905-2

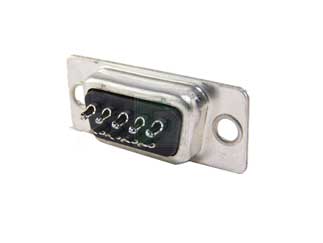

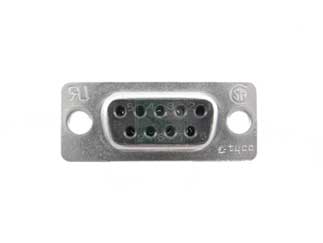

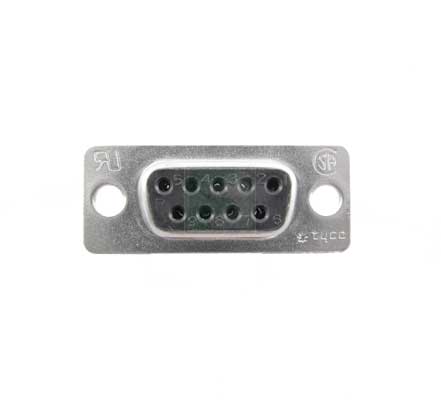

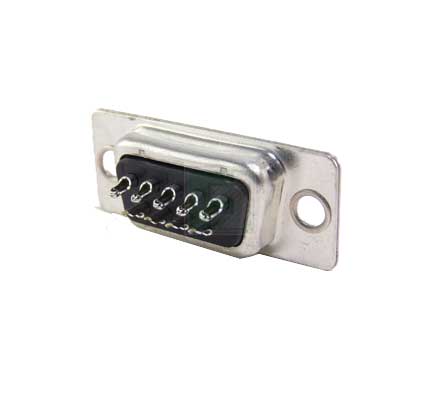

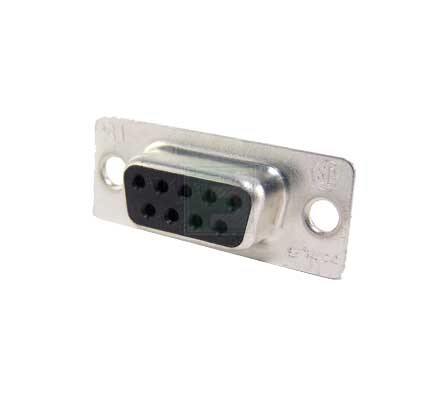

HD20 Series 9 Position Solder Contact Socket D-Sub Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Tray Mounting Method:Through Hole | ||||||||||
| Date Code: | 2415 | ||||||||||
Product Specification Section
TE Connectivity 5-747905-2 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5-747905-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/en/p/interconnect--connectors-d-subs/5-747905-2-te-connectivity-5543459
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5-747905-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/en/p/interconnect--connectors-d-subs/5-747905-2-te-connectivity-5543459
TE Connectivity 5-747905-2 - Technical Attributes
Attributes Table
| Style/Orientation: | Standard Cable Receptacle |
| No of Positions: | 9 |
| No of Rows: | 2 |
| Termination: | Male/Pin Solder Cup |
| Pitch: | 2.77 mm |
| Material: | Front Metal |
| Shell Size: | 1 E |
| Gender: | Female |
| Color: | Black |
| Current Rating: | 3A |
| Contact Plating: | Gold |
| Insulation Resistance: | 5000Ω |
| Operating Temperature: | -55°C to +105°C |
| Mounting Method: | Through Hole |
Features & Applications
The 5-747905-2 is a part of HD20 Series 9 Position Solder Contact Socket D-Sub Connector.
Features:
- Product Type = Connector
- Product Series = HD-20 (Solder Cup)
- Termination Method to Wire/Cable = Solder
- Mating Connector Lock = With
- Mating Connector Lock Type = Mounting Holes
- Shell Size = 1
- Solder Tail Contact Plating = Tin-Copper over Nickel
- Number of Positions = 9
- Wire Range (mm² [AWG]) = 0.5 - 0.6 [20]
- Shell Plating = Tin
- Preloaded = Yes
- Contact Type = Socket
- Contact Base Material = Phosphor Bronze
- Connector Style = Receptacle
- Contact Size = 20
- RoHS/ELV Compliance = RoHS compliant, ELV compliant
Pricing Section
Global Stock:
7,999
USA:
7,999
On Order:
0
Factory Lead Time:
8 Weeks
Quantity
Unit Price
1
$1.83
30
$1.80
100
$1.78
200
$1.76
500+
$1.71
Product Variant Information section
Available Packaging
Package Qty:
50 per Tray
Mounting Method:
Through Hole
