Manufacturer Part #
IS2805

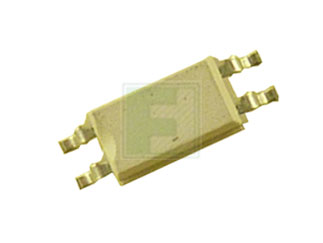

4 Pin AC Input, Half Pitch Optocouplers
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Isocom Components | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Reel Package Style:SOIC-4 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2413 | ||||||||||
Product Specification Section
Isocom Components IS2805 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=IS2805&field4=Isocom Components&field18=https://p1na.futureelectronics.com/en/p/semiconductors--optoelectronics--isolation-components-optocouplers/is2805-isocom-components-7128568
Isocom Components IS2805 - Technical Attributes
Attributes Table
| No of Channels: | 1 |
| Isolation Voltage-RMS: | 3.75kV |
| Output Voltage-Max: | 80V |
| Propagation Delay: | 18µs |
| Forward Voltage: | 1.2V |
| Reverse Voltage-Max [Vrrm]: | 6V |
| Average Forward Current-Max: | 50mA |
| Power Dissipation: | 150mW |
| Output Type: | Transistor |
| CTR-Min: | 20% |
| Operating Temp-Max: | 100°C |
| Storage Temperature Range: | -55°C to +125°C |
| Package Style: | SOIC-4 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
4,000
USA:
4,000
On Order:
0
Factory Lead Time:
3 Weeks
Quantity
Unit Price
1,000
$0.19
3,000
$0.187
4,000
$0.186
10,000
$0.183
15,000+
$0.18
Product Variant Information section
Available Packaging
Package Qty:
1000 per Reel
Package Style:
SOIC-4
Mounting Method:
Surface Mount
