Manufacturer Part #
JANTX2N6287

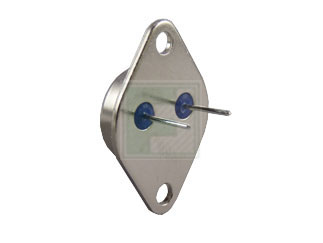

JANTX Series PNP 175 W 100 V 20 A SMT Bipolar Power Transistor - TO-204 AA
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Tray Package Style:TO-3 (TO-204) Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Microchip JANTX2N6287 - Product Specification
Shipping Information:
ECCN:
PCN Information:
PCN Status:Final NotificationDescription of Change:Qualification of MP3B as a new assembly site for selected Microsemi HRDS Metal Can products.Reason for Change:To improve on-time delivery performance by qualifying MP3B as new assembly site.Change Implementation Status:In ProgressEstimated First Ship Date:June 3, 2024 (date code: 2423)
Revision History:January 23, 2024: Issued initial notification.January 31, 2024: Re-issued initial notification to update product description from glass products to metal can products. Description of Change:Qualification of MP3B as a new assembly site for selected Microsemi HRDS Metal Can products.Reason for Change:To improve on-time delivery performance by qualifying MP3B as new assembly site.
Revision History:January 23, 2024: Issued initial notification.January 31, 2024: Re-issued initial notification to update product description from glass products to metal can products. Description of Change:Qualification of MP3B as a new assembly site for selected Microsemi HRDS Metal Can products.Reason for Change:To improve on-time delivery performance by qualifying MP3B as new assembly site.
Part Status:
Microchip JANTX2N6287 - Technical Attributes
| Product Status: | Active |
| Polarity: | PNP |
| Type: | Darlington |
| CE Voltage-Max: | 100V |
| Collector Current Max: | 20A |
| Power Dissipation-Tot: | 175W |
| Collector - Base Voltage: | 100V |
| Collector - Emitter Saturation Voltage: | 3V |
| Emitter - Base Voltage: | 7V |
| DC Current Gain-Min: | 1250 |
| Collector - Current Cutoff: | 1mA |
| Configuration: | Single |
| Operating Temp Range: | -65°C to +175°C |
| Moisture Sensitivity Level: | 1 |
| Package Style: | TO-3 (TO-204) |
| Mounting Method: | Through Hole |
Available Packaging
Package Qty:
1 per Tray
Package Style:
TO-3 (TO-204)
Mounting Method:
Through Hole
