Manufacturer Part #
STU10NM60N

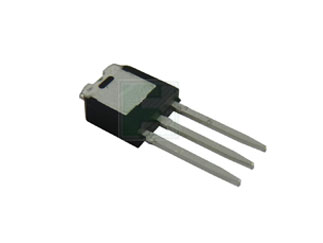

Single N-Channel 650 V 0.55 Ohm 19 nC 70 W MDmesh Mosfet - TO-262
| | |||||||||||
| | |||||||||||
| Mfr. Name: | STMicroelectronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:75 per Package Style:TO-262 (I2PAK) Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
STMicroelectronics STU10NM60N - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=STU10NM60N&field4=STMicroelectronics&field18=https://p1emea.futureelectronics.com/es/p/semiconductors--discretes--transistors--mosfets/stu10nm60n-stmicroelectronics-9071510
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=STU10NM60N&field4=STMicroelectronics&field18=https://p1emea.futureelectronics.com/es/p/semiconductors--discretes--transistors--mosfets/stu10nm60n-stmicroelectronics-9071510
STMicroelectronics STU10NM60N - Technical Attributes
Attributes Table
| Fet Type: | N-Ch |
| No of Channels: | 1 |
| Drain-to-Source Voltage [Vdss]: | 650V |
| Drain-Source On Resistance-Max: | 0.55Ω |
| Rated Power Dissipation: | 70W |
| Qg Gate Charge: | 19nC |
| Gate-Source Voltage-Max [Vgss]: | 25V |
| Drain Current: | 10A |
| Turn-on Delay Time: | 10ns |
| Turn-off Delay Time: | 32ns |
| Rise Time: | 12ns |
| Fall Time: | 15ns |
| Operating Temp Range: | -55°C to +150°C |
| Gate Source Threshold: | 4V |
| Technology: | MDmesh |
| Height - Max: | 9.35mm |
| Length: | 10.4mm |
| Input Capacitance: | 540pF |
| Package Style: | TO-262 (I2PAK) |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
Germany:
0
On Order:
0
Factory Lead Time:
14 Weeks
Quantity
Unit Price
75+
$0.89
Product Variant Information section
Available Packaging
Package Qty:
75 per
Package Style:
TO-262 (I2PAK)
Mounting Method:
Through Hole
