Manufacturer Part #

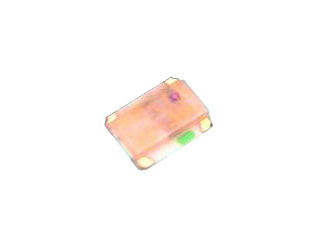

LTST-C19GD2WT
Green/Red/Blue 2.1 x 1.6 x 0.4 mm 130° 150/100 mcd Diffused 3.5/2/3.5 V SMT LED
| | |||||||||||
| | |||||||||||
| Mfr. Name: | LITEON | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:5000 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2444 | ||||||||||
LITEON LTST-C19GD2WT - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of Change:Lite-On will be introducing the additional dice material for chip LED and the affected part numbers are shown in this notice.Reason of Change:In an attempt to mitigate any potential risk to supply continuity, Lite-On has proactively identified alternative bill of materials to improve upon its current sources. The alternative dice has been qualified in Lite-On materials pool.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=LTST-C19GD2WT&field4=LITEON&field18=https://p1na.futureelectronics.com/fr/p/2061590
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=LTST-C19GD2WT&field4=LITEON&field18=https://p1na.futureelectronics.com/fr/p/2061590
LITEON LTST-C19GD2WT - Technical Attributes
| Color: | Green / Red / Blue |
| Lens Type: | Diffused |
| Forward Voltage: | 3.5V/2V/3.5V |
| Forward (Drive) Current: | 20mA/30mA/20mA |
| Intensity: | 150mcd/100mcd/40mcd |
| Viewing Angle: | 130° |
| Dimension: | H 0.4mm x L 2.1mm x W 1.6mm |
| Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
5000 per Reel
Mounting Method:
Surface Mount
