STMicroelectronics | ESDALC5-1BT2Y

Manufacturer Part #

ESDALC5-1BT2Y

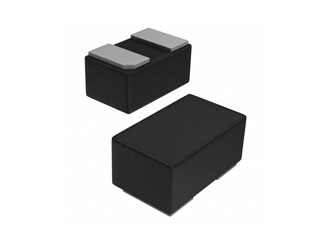

ESDALC5 Series 150 W 5.8 V Bi-Directional Single-Line Transil TVS Diode-SOT-882T

ECAD Model:
Mfr. Name: STMicroelectronics
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
STMicroelectronics ESDALC5-1BT2Y - Technical Attributes
Attributes Table
Breakdown Voltage-Min: 5.8V
Clamping Voltage-Max: 17.7V
Directional: Bi-Directional
Power Dissipation: 150W
Peak Output Current: 9A
Reverse Leakage Current: 0.06µA
Peak Power: 150W
Standoff Voltage: 5V
Operating Temp Range: -50°C to +125°C
Storage Temperature Range: -65°C to +125°C
Capacitance: 30pF
Breakdown Voltage-Max: 11V
Mounting Method: Surface Mount
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
-1
Factory Lead Time:
15 Weeks
Minimum Order:
12000
Multiple Of:
12000
Total
$649.20
USD
Quantity
Unit Price
12,000
$0.0541
24,000
$0.0533
36,000
$0.0528
48,000
$0.0525
60,000+
$0.0514
