Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

MSB-T

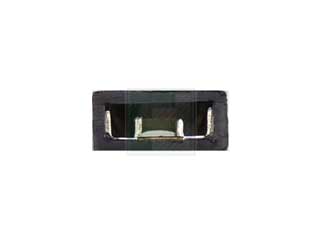

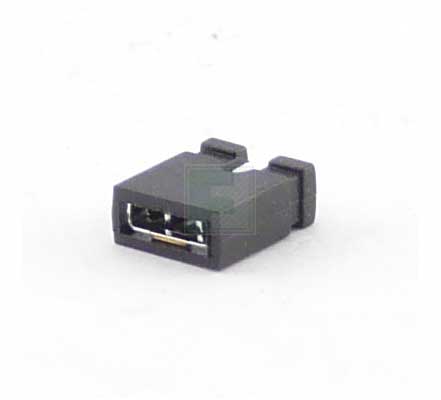

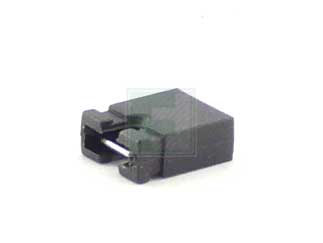

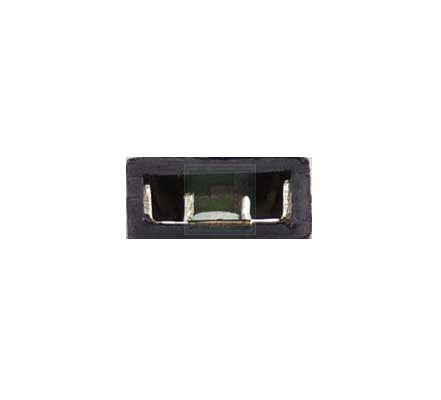

MSB Series 0.236 inch Open Top Tin Plated Mini Shunt

MSB-T Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free. Learn more about ECAD model.
Mfr. Name:	Adam Tech
Standard Pkg:	Product Variant Information section Available Packaging Bag BagSelected Variant Qty: 1+ / Unit Price: $0.0175 / Stock: 12,672 Qty: 1+$0.0175 Stock: 12,672 Package Qty: 1000 per Bag Mounting Method: PCB Mount
Date Code:	2535

Adam Tech MSB-T - Technical Attributes

Type:	Shunt
Pitch:	2.54 mm
Contact Material:	Phosphor Bronze
Current Rating:	3A
Gender:	Female
Mounting Method:	PCB Mount

Features & Applications

The MSB-T is a part of MSB series 2.54 mm shunt. It has an operating temperature ranging from -55°C to +105°C.

The MS Series Mini Shunts are available in .050", 2.0mm,.100" and .200" centerlines. They quickly and easily jump individualor strip pin headers to perform manual programming on PCB’s. Thisseries offers a broad range of sizes, shapes and colors. Shunts aredesigned with detents at top for easy fingertip installation andremoval. Options include integrated pull tabs and gang types whichare molded in one piece. This series is extremely low cost and is ahighly economical, cost effective solution to replacing PCB switches.

Features:
