Manufacturer Part #
B02B-PASK(LF)(SN)

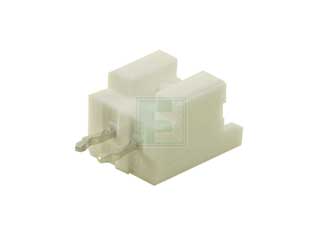

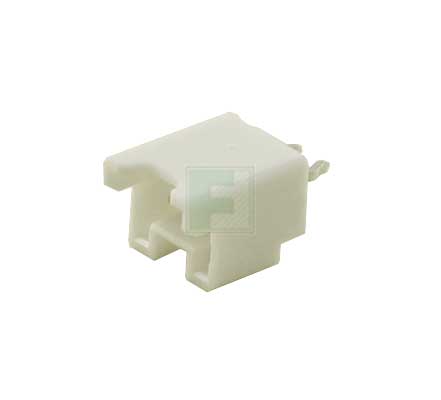

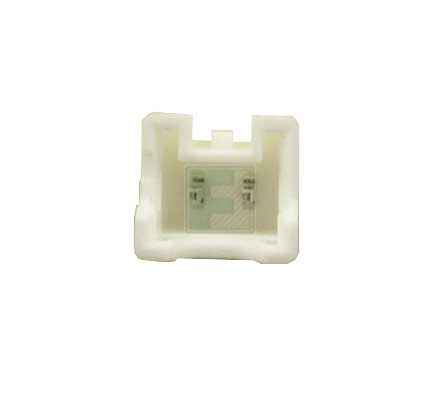

PA Series 2 Position 2 mm Pitch Top Entry No Boss Through Hole Shrouded Header
| | |||||||||||
| | |||||||||||
| Mfr. Name: | JST | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Bag Mounting Method:Through Hole | ||||||||||
| Date Code: | 2142 | ||||||||||
JST B02B-PASK(LF)(SN) - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=B02B-PASK(LF)(SN)&field4=JST&field18=https://p1na.futureelectronics.com/fr/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/b02b-pask-lf-sn-jst-7658032
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=B02B-PASK(LF)(SN)&field4=JST&field18=https://p1na.futureelectronics.com/fr/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/b02b-pask-lf-sn-jst-7658032
JST B02B-PASK(LF)(SN) - Technical Attributes
| No of Positions: | 2 |
| Pitch: | 2 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Crimp |
| Operating Temp Range: | -25°C to +85°C |
| Voltage Rating: | 250V |
| Current Rating: | 3A |
| Contact Plating: | Tin |
| Material: | Polybutylene Terephthalate |
| No of Rows: | 1 |
| Type: | Wire to Board |
| Color: | Natural |
| Insulation Resistance: | 1000MΩ |
| Mounting Method: | Through Hole |
Features & Applications
The PA,PAF,PAL series headers features compatibility with both crimp and IDC sockets. The housing has a locking device to prevent accidental disconnection, and a secondary retainer enhances safety in case of partial insertion. The header is compatible with the PAF, PAP and PARP housing series and the SPA and SPHD contacts.
The B02B-PASK(LF)(SN) is a two (2) circuit, top entry, 2mm pitch, single row, throughole shrouded header without boss. The board mounting header is white, and male pin posts are copper alloy and tin plated and has a press fit termination type.
Available Packaging
Package Qty:
1000 per Bag
Mounting Method:
Through Hole
