Référence fabricant
MC3303DR2G

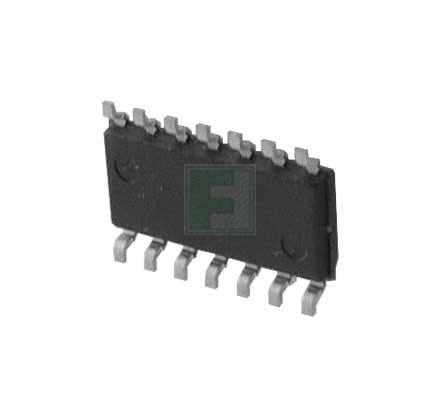

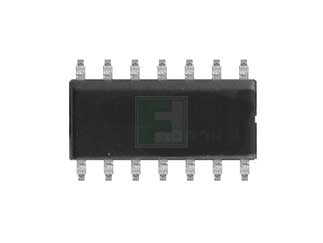

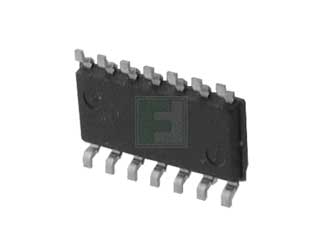

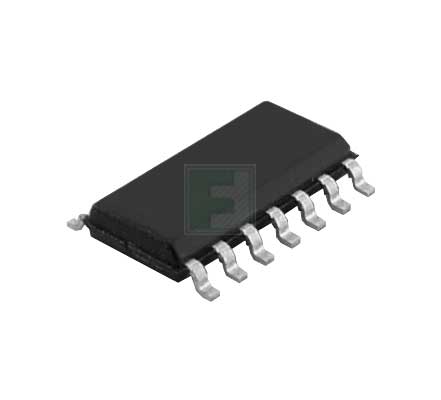

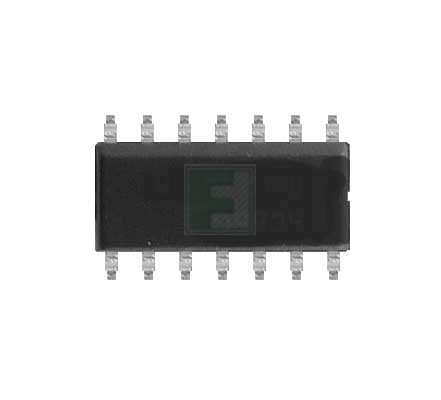

MC Series 0.6 V/us 36 V SMT Single Supply Quad Operational Amplifier - SOIC-14
| | |||||||||||
| | |||||||||||
| Nom du fabricant: | onsemi | ||||||||||
| Emballage standard: | Product Variant Information section Emballages disponiblesQté d'emballage(s) :2500 par Reel Style d'emballage :SOIC-14 Méthode de montage :Surface Mount | ||||||||||
| Code de date: | |||||||||||
onsemi MC3303DR2G - Spécifications du produit
Informations de livraison:
ECCN:
Informations PCN:
Statut du produit:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=MC3303DR2G&field4=onsemi&field18=https://p1na.futureelectronics.com/fr/p/semiconductors--analog--amplifiers--general-purpose/mc3303dr2g-onsemi-5245253
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=MC3303DR2G&field4=onsemi&field18=https://p1na.futureelectronics.com/fr/p/semiconductors--analog--amplifiers--general-purpose/mc3303dr2g-onsemi-5245253
onsemi MC3303DR2G - Caractéristiques techniques
| Amplifier Type: | General Purpose |
| No of Channels: | 4 |
| Slew Rate-Nom: | 0.6V/µs |
| Input Offset Voltage-Max: | 8mV |
| Gain Bandwidth Product: | 1MHz |
| Average Bias Current-Max: | -1000nA |
| Supply Voltage: | 3V to 36V |
| Common Mode Rejection Ratio: | 90dB |
| Supply Current: | 2.8mA |
| Operating Temp Range: | -40°C to +85°C |
| Phase Margin: | 60° |
| Output Current: | 45mA |
| Moisture Sensitivity Level: | 1 |
| Style d'emballage : | SOIC-14 |
| Méthode de montage : | Surface Mount |
Fonctionnalités et applications
The MC3403 is a low cost, quad operational amplifier with true differential inputs. The device has electrical characteristics similar to the popular MC1741C. However, the MC3403 has several distinct advantages over standard operational amplifier types in single supply applications. The quad amplifier can operate at supply voltages as low as 3.0 V or as high as 36 V with quiescent currents about one third of those associated with the MC1741C (on a per amplifier basis). The common mode input range includes the negative supply, thereby
eliminating the necessity for external biasing components in many applications. The output voltage range also includes the negative power supply voltage.
Key Features:
- Short Circuit Protected Outputs.
- Class AB Output Stage for Minimal Crossover Distortion.
- True Differential Input Stage.
- Single Supply Operation: 3.0 V to 36 V.
- Split Supply Operation: ±1.5 V to ±18 V.
- Low Input Bias Currents: 500 nA Max.
- Four Amplifiers Per Package.
- Internally Compensated.
- Similar Performance to Popular MC1741C.
- Industry Standard Pin-outs.
- ESD Diodes Added for Increased Ruggedness.
- Pb-Free Packages are Available.
To learn more about the MC3303 product family, Click Here
Emballages disponibles
Qté d'emballage(s) :
2500 par Reel
Style d'emballage :
SOIC-14
Méthode de montage :
Surface Mount
