Manufacturer Part #
FF450R12KT4HOSA1

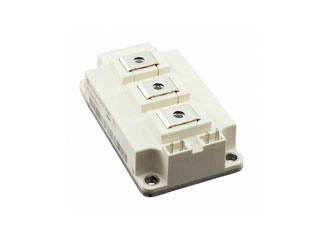

FF450R12KT4 Series 1200 V 580 A Trench Field-Stop IGBT Module
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Infineon | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:10 per Tray Mounting Method:Chassis Mount | ||||||||||
| Date Code: | 2438 | ||||||||||
Infineon FF450R12KT4HOSA1 - Product Specification
Shipping Information:
ECCN:
PCN Information:
**Update to FPCN 104586**Detailed change information:The shipping packaging for 62mm products will be changed. Please note that all new products are going to be also affected.Excluding products with pendulum packaging (Pendelverpackung) from affected product list.Reason:Harmonization of shipping packaging box to the same box size across the 62mm package.
**Update to FPCN 104586**Detailed change information:The shipping packaging for 62mm products will be changed. Please note that all new products are going to be also affected.Excluding products with pendulum packaging (Pendelverpackung) from affected product list.Reason:Harmonization of shipping packaging box to the same box size across the 62mm package.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=FF450R12KT4HOSA1&field4=Infineon&field18=https://p1na.futureelectronics.com/fr/p/semiconductors--discretes--transistors--igbts/ff450r12kt4hosa1-infineon-5090296
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=FF450R12KT4HOSA1&field4=Infineon&field18=https://p1na.futureelectronics.com/fr/p/semiconductors--discretes--transistors--igbts/ff450r12kt4hosa1-infineon-5090296
Infineon FF450R12KT4HOSA1 - Technical Attributes
| CE Voltage-Max: | 1200V |
| Collector Current @ 25C: | 580A |
| Power Dissipation-Tot: | 2400W |
| Gate - Emitter Voltage: | 20V |
| Pulsed Collector Current: | 900A |
| Collector - Emitter Saturation Voltage: | 1.75V |
| Turn-on Delay Time: | 0.16µs |
| Turn-off Delay Time: | 0.45µs |
| Qg Gate Charge: | 3600nC |
| Leakage Current: | 400nA |
| Input Capacitance: | 28nF |
| Operating Temp Range: | -40°C to +150°C |
| No of Terminals: | 7 |
| Mounting Method: | Chassis Mount |
Available Packaging
Package Qty:
10 per Tray
Mounting Method:
Chassis Mount
